SKU: UCC307-SNR

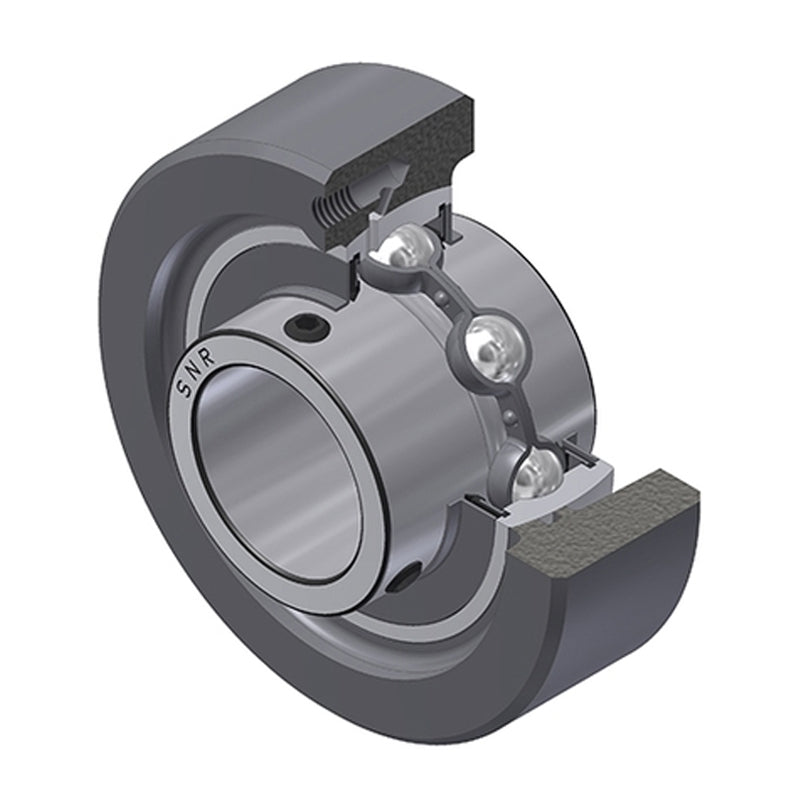

SNR UCC307 Metric Cast Iron Cartridge Unit with 35mm Bore Insert 32mm Outside Dia - Allow 2-3 Days
SNR UCC307 Metric Cast Iron Cartridge Unit with 35mm Bore Insert 32mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 8,509.41
Regular price
Sale price
Rs. 8,509.41
Taxes included.
In stock
Price Break
5+
Rs. 8,424.32
10+
Rs. 8,083.94
20+
Rs. 7,913.75
50+
Rs. 7,658.47
100+
Rs. 7,488.28
500+
Rs. 7,062.81
1000+
Rs. 5,956.59
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 32mm |
| A3 | 2mm |
| B | 48mm |
| H | 110mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 33.5 kN |
| Static load C0 | 19.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.71 kg |
