SKU: UCC306-SNR

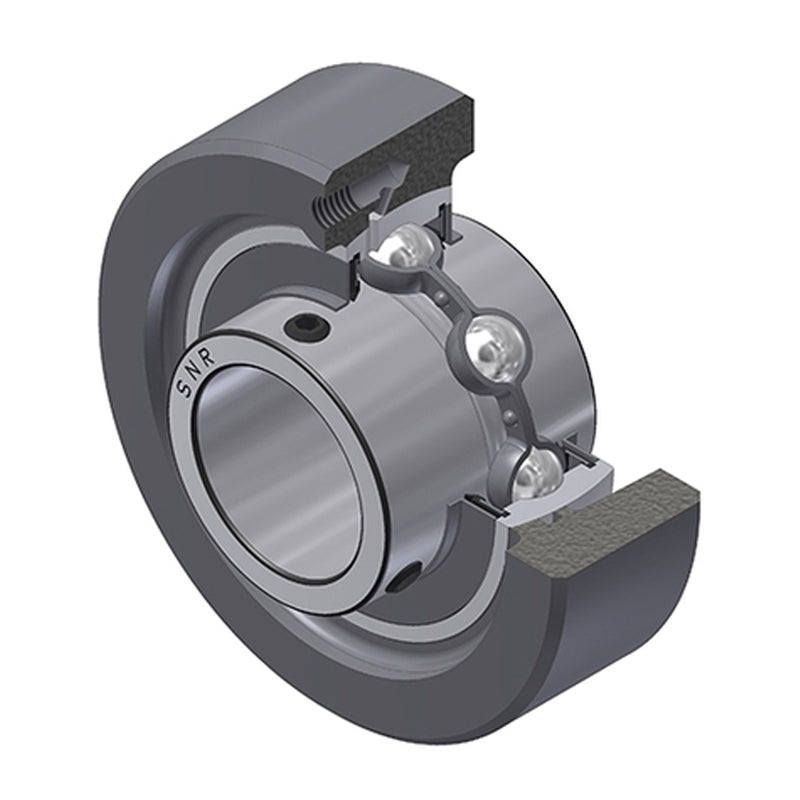

SNR UCC306 Metric Cast Iron Cartridge Unit with 30mm Bore Insert 28mm Outside Dia - Allow 2-3 Days
SNR UCC306 Metric Cast Iron Cartridge Unit with 30mm Bore Insert 28mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 8,504.29
Regular price
Sale price
Rs. 8,504.29
Taxes included.
In stock
Price Break
5+
Rs. 8,419.25
10+
Rs. 8,079.08
20+
Rs. 7,908.99
50+
Rs. 7,653.86
100+
Rs. 7,483.78
500+
Rs. 7,058.56
1000+
Rs. 5,953.00
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 28mm |
| A3 | 2mm |
| B | 43mm |
| H | 100mm |
| S | 17mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 27 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.26 kg |
