SKU: UCC216-SNR

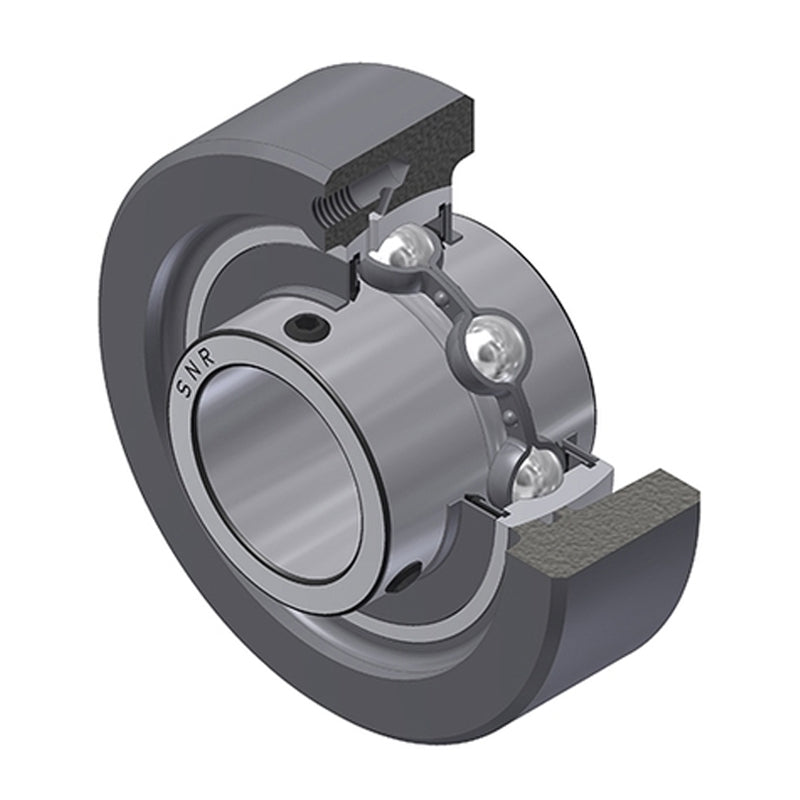

SNR UCC216 Metric Cast Iron Cartridge Unit with 80mm Bore Insert 48mm Outside Dia - Allow 2-3 Days
SNR UCC216 Metric Cast Iron Cartridge Unit with 80mm Bore Insert 48mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 25,534.62
Regular price
Sale price
Rs. 25,534.62
Taxes included.
In stock
Price Break
5+
Rs. 25,279.27
10+
Rs. 24,257.89
20+
Rs. 23,747.20
50+
Rs. 22,981.16
100+
Rs. 22,470.47
500+
Rs. 21,193.73
1000+
Rs. 17,874.23
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 80mm |
| A | 48mm |
| A3 | 2.5mm |
| B | 82.6mm |
| H | 170mm |
| S | 33.3mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 72.5 kN |
| Static load C0 | 54.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 5.19 kg |
