SKU: UCC215-SNR
SNR UCC215 Metric Cast Iron Cartridge Unit with 75mm Bore Insert 44mm Outside Dia - Allow 2-3 Days
SNR UCC215 Metric Cast Iron Cartridge Unit with 75mm Bore Insert 44mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 22,691.33
Regular price
Sale price
Rs. 22,691.33
Taxes included.
In stock
Price Break
5+
Rs. 22,464.42
10+
Rs. 21,556.76
20+
Rs. 21,102.94
50+
Rs. 20,422.20
100+
Rs. 19,968.37
500+
Rs. 18,833.80
1000+
Rs. 15,883.93
Description
Description

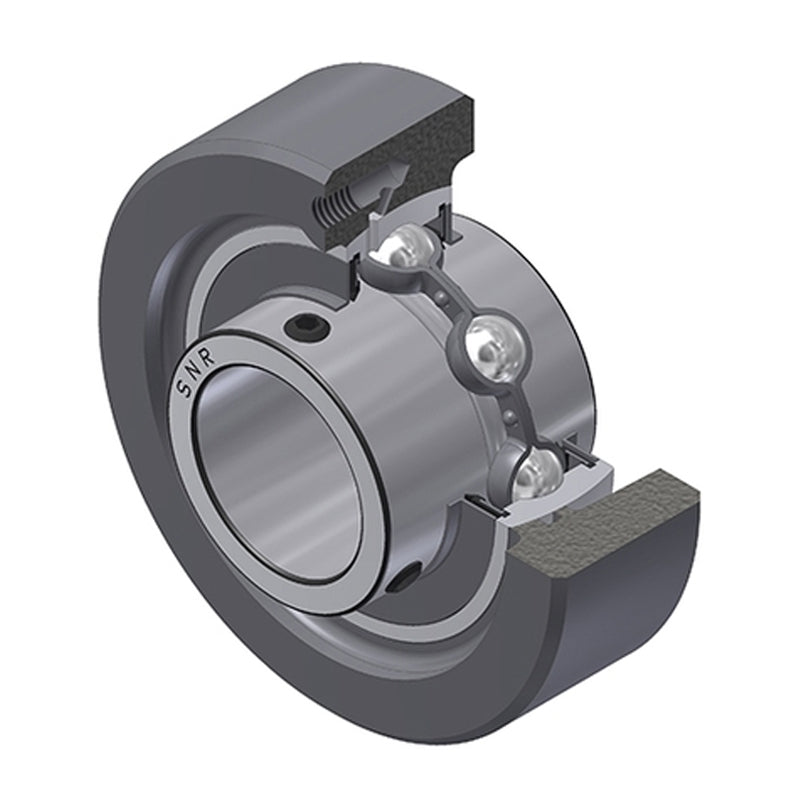

UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 75mm
- Style:
- UCC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 75mm |
| A | 44mm |
| A3 | 2.5mm |
| B | 77.8mm |
| H | 160mm |
| S | 33.3mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 66 kN |
| Static load C0 | 49.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 4.31 kg |
