SKU: UCC213-SNR
SNR UCC213 Metric Cast Iron Cartridge Unit with 65mm Bore Insert 40mm Outside Dia - Allow 2-3 Days
SNR UCC213 Metric Cast Iron Cartridge Unit with 65mm Bore Insert 40mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 10,694.69
Regular price
Sale price
Rs. 10,694.69
Taxes included.
In stock
Price Break
10+
Rs. 9,518.27
19+
Rs. 8,983.54
29+
Rs. 8,876.59
39+
Rs. 8,769.65
49+
Rs. 8,662.70
74+
Rs. 8,555.75
99+
Rs. 8,021.02
199+
Rs. 7,914.07
249+
Rs. 7,807.12
499+
Rs. 7,700.18
999+
Rs. 7,486.28
Description
Description

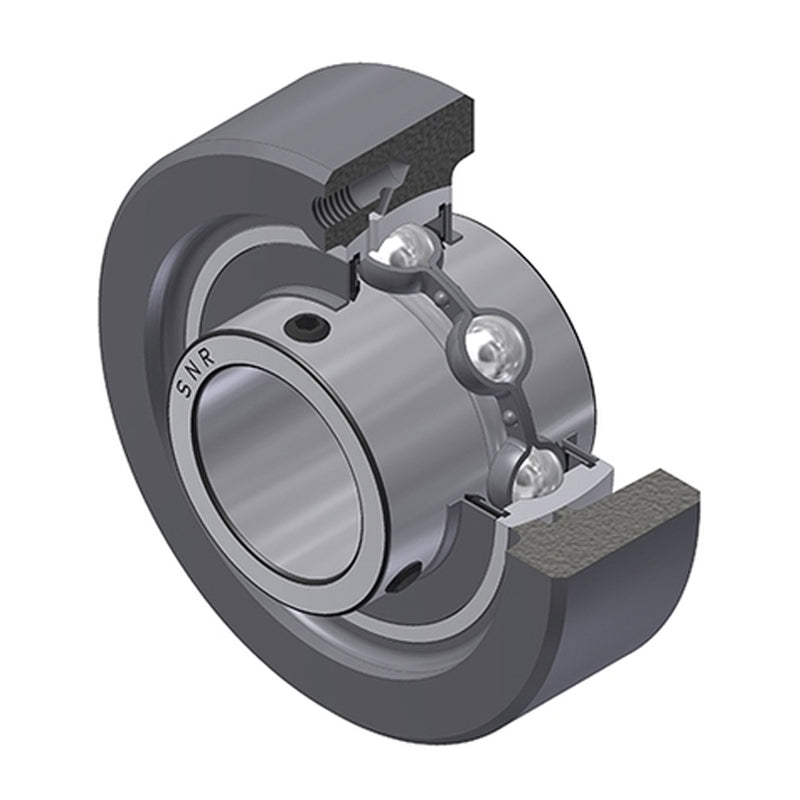

UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 65mm |
| A | 40mm |
| A3 | 2mm |
| B | 65.1mm |
| H | 140mm |
| S | 25.4mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 57.2 kN |
| Static load C0 | 40 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.96 kg |
