SKU: UCC212-SNR
SNR UCC212 Metric Cast Iron Cartridge Unit with 60mm Bore Insert 38mm Outside Dia - Allow 2-3 Days
SNR UCC212 Metric Cast Iron Cartridge Unit with 60mm Bore Insert 38mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 8,926.75
Regular price
Sale price
Rs. 8,926.75
Taxes included.
In stock
Price Break
10+
Rs. 7,944.81
19+
Rs. 7,498.47
29+
Rs. 7,409.20
39+
Rs. 7,319.94
49+
Rs. 7,230.67
74+
Rs. 7,141.40
99+
Rs. 6,695.06
199+
Rs. 6,605.80
249+
Rs. 6,516.53
499+
Rs. 6,427.26
999+
Rs. 6,248.73
Description
Description

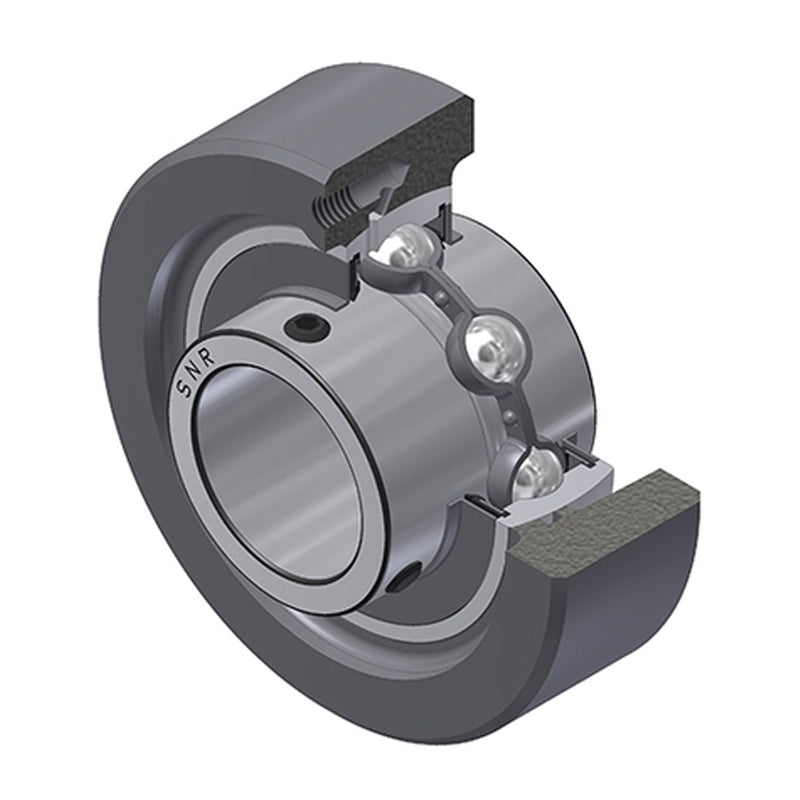

UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 38mm |
| A3 | 2mm |
| B | 65.1mm |
| H | 130mm |
| S | 25.4mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.53 kg |
