SKU: UCC211-SNR

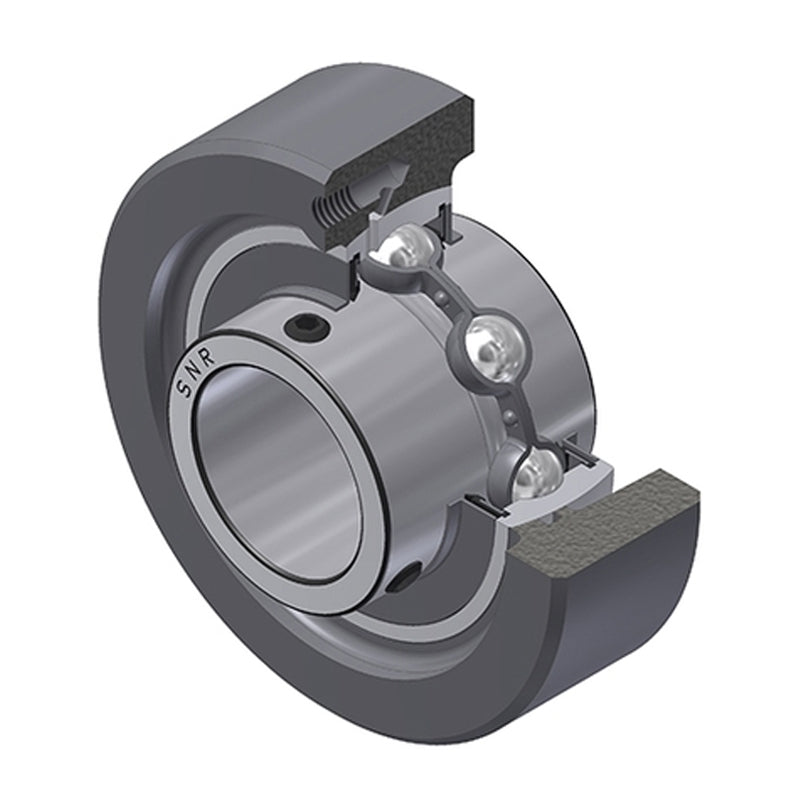

SNR UCC211 Metric Cast Iron Cartridge Unit with 55mm Bore Insert 35mm Outside Dia - Allow 2-3 Days
SNR UCC211 Metric Cast Iron Cartridge Unit with 55mm Bore Insert 35mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 7,917.96
Regular price
Sale price
Rs. 7,917.96
Taxes included.
In stock
Price Break
10+
Rs. 7,046.98
19+
Rs. 6,651.09
29+
Rs. 6,571.91
39+
Rs. 6,492.73
49+
Rs. 6,413.55
74+
Rs. 6,334.37
99+
Rs. 5,938.47
199+
Rs. 5,859.29
249+
Rs. 5,780.11
499+
Rs. 5,700.93
999+
Rs. 5,542.57
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 35mm |
| A3 | 2mm |
| B | 55.6mm |
| H | 125mm |
| S | 22.2mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.22 kg |
