SKU: UCC210-30

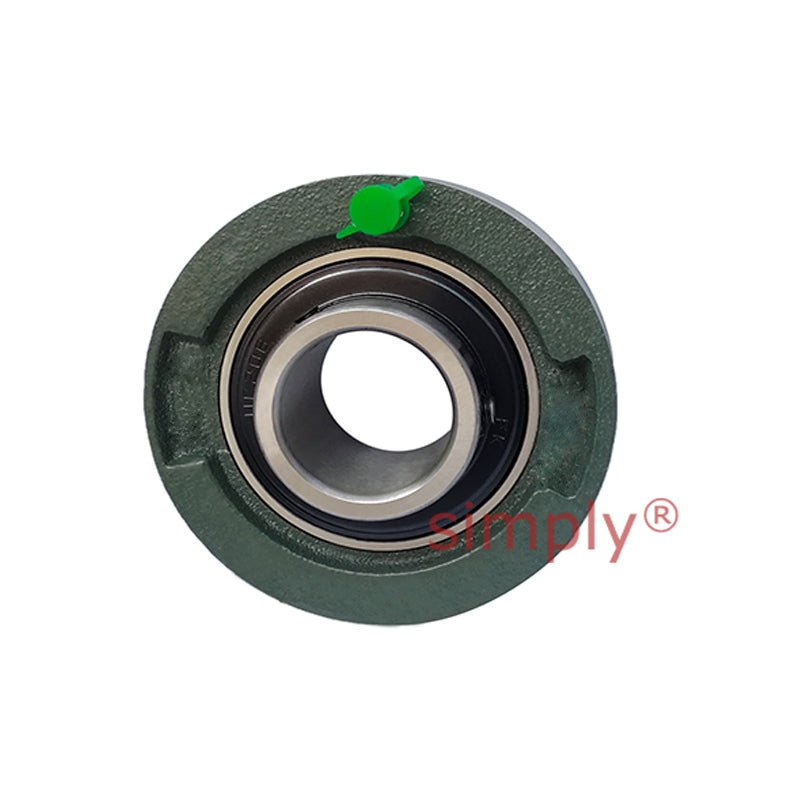

UCC210-30 Imperial Cast Iron Normal Duty Cartridge Unit with 1-7/8 inch Bore Insert 4.7244 inch Outside Dia
UCC210-30 Imperial Cast Iron Normal Duty Cartridge Unit with 1-7/8 inch Bore Insert 4.7244 inch Outside Dia
Regular price
Rs. 6,096.25
Regular price
Sale price
Rs. 6,096.25
Taxes included.
In stock
Price Break
10+
Rs. 5,425.66
19+
Rs. 5,120.85
29+
Rs. 5,059.89
39+
Rs. 4,998.93
49+
Rs. 4,937.96
74+
Rs. 4,877.00
99+
Rs. 4,572.19
199+
Rs. 4,511.23
249+
Rs. 4,450.26
499+
Rs. 4,389.30
999+
Rs. 4,267.38
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 47.63mm = 1.875 (1-7/8) inch
- Outside Diameter:
- 120mm = 4.7244 inch
- Style:
- UCC
Technical
Technical
| Bore d | 1-7/8 inch |
|---|---|
| Outer Dia a | 4.7244 inch |
| g | 1-19/04 inch |
| r | 0.098 inch |
| B | 2.0315 inch |
| n | 0.748 inch |
| Bearing No | UC210-30 |
| Housing No | C210 |
