SKU: UCC209-SNR

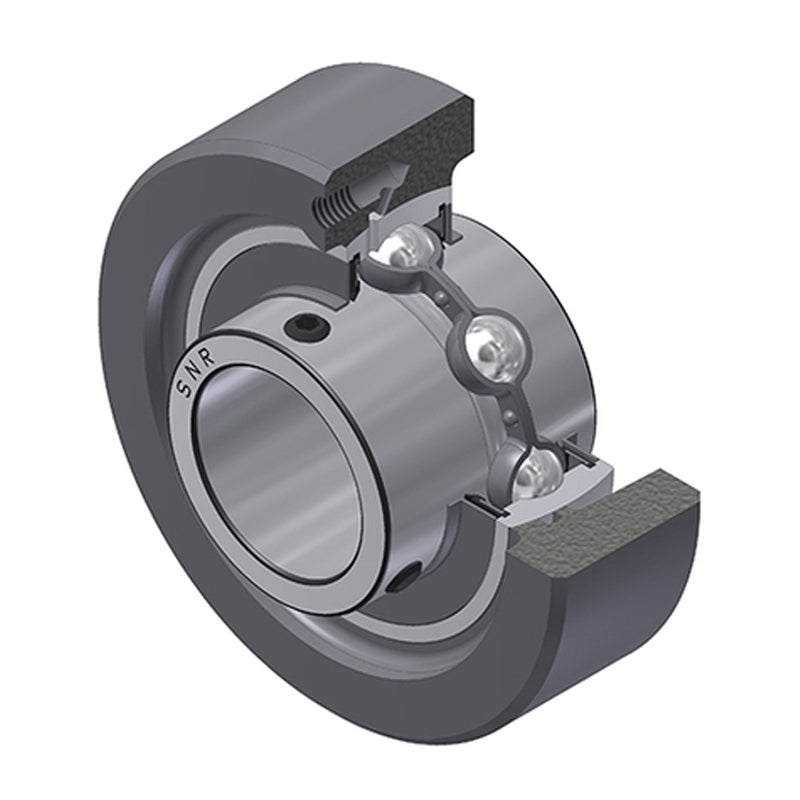

SNR UCC209 Metric Cast Iron Cartridge Unit with 45mm Bore Insert 31mm Outside Dia - Allow 2-3 Days
SNR UCC209 Metric Cast Iron Cartridge Unit with 45mm Bore Insert 31mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 5,676.35
Regular price
Sale price
Rs. 5,676.35
Taxes included.
In stock
Price Break
10+
Rs. 5,051.95
19+
Rs. 4,768.13
29+
Rs. 4,711.37
39+
Rs. 4,654.61
49+
Rs. 4,597.84
74+
Rs. 4,541.08
99+
Rs. 4,257.26
199+
Rs. 4,200.50
249+
Rs. 4,143.74
499+
Rs. 4,086.97
999+
Rs. 3,973.45
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 31mm |
| A3 | 2mm |
| B | 49.2mm |
| H | 110mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.48 kg |
