SKU: UCC209-27

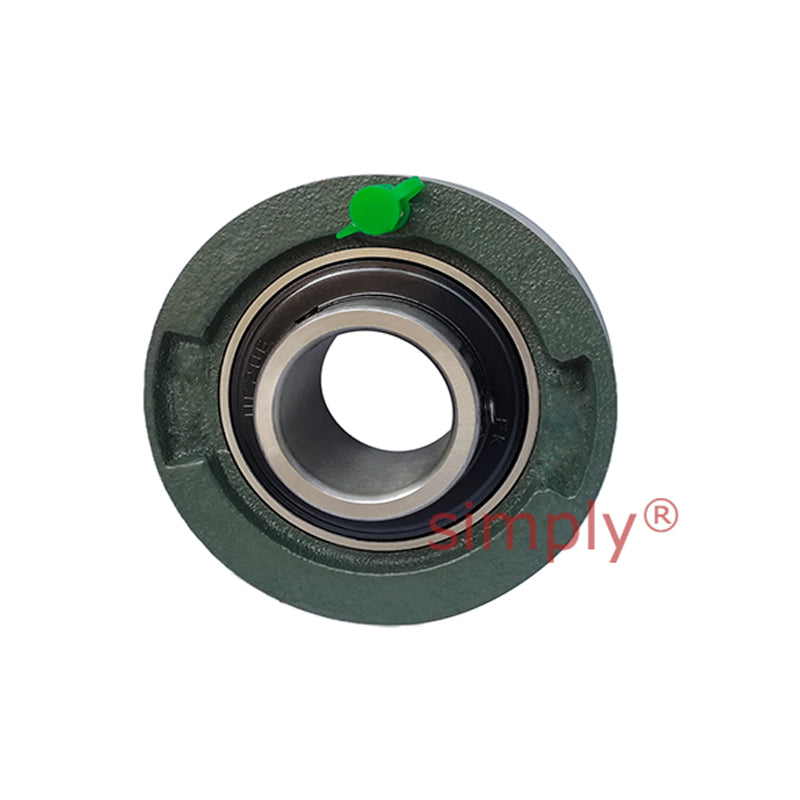

UCC209-27 Imperial Cast Iron Normal Duty Cartridge Unit with 1-11/16 inch Bore Insert 4.3307 inch Outside Dia
UCC209-27 Imperial Cast Iron Normal Duty Cartridge Unit with 1-11/16 inch Bore Insert 4.3307 inch Outside Dia
Regular price
Rs. 3,921.21
Regular price
Sale price
Rs. 3,921.21
Taxes included.
In stock
Price Break
10+
Rs. 3,489.88
19+
Rs. 3,293.82
29+
Rs. 3,254.60
39+
Rs. 3,215.39
49+
Rs. 3,176.18
74+
Rs. 3,136.97
99+
Rs. 2,940.91
199+
Rs. 2,901.70
249+
Rs. 2,862.48
499+
Rs. 2,823.27
999+
Rs. 2,744.85
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Outside Diameter:
- 110mm = 4.3307 inch
- Style:
- UCC
Technical
Technical
| Bore d | 1-11/16 inch |
|---|---|
| Outer Dia a | 4.3307 inch |
| g | 1-7/32 inch |
| r | 0.098 inch |
| B | 1.937 inch |
| n | 0.748 inch |
| Bearing No | UC 209-27 |
| Housing No | C209 |
