SKU: UCC209-26

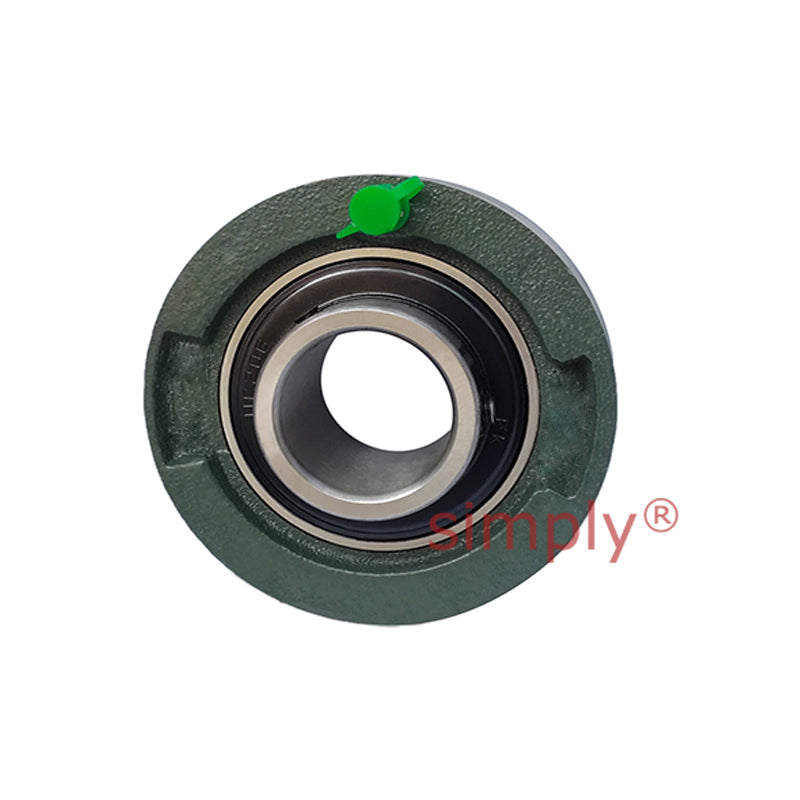

UCC209-26 Imperial Cast Iron Normal Duty Cartridge Unit with 1-5/8 inch Bore Insert 4.3307 inch Outside Dia
UCC209-26 Imperial Cast Iron Normal Duty Cartridge Unit with 1-5/8 inch Bore Insert 4.3307 inch Outside Dia
Regular price
Rs. 3,565.32
Regular price
Sale price
Rs. 3,565.32
Taxes included.
In stock
Price Break
10+
Rs. 3,173.13
19+
Rs. 2,994.87
29+
Rs. 2,959.22
39+
Rs. 2,923.56
49+
Rs. 2,887.91
74+
Rs. 2,852.26
99+
Rs. 2,673.99
199+
Rs. 2,638.34
249+
Rs. 2,602.68
499+
Rs. 2,567.03
999+
Rs. 2,495.72
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Outside Diameter:
- 110mm = 4.3307 inch
- Style:
- UCC
Technical
Technical
| Bore d | 1-5/8 inch |
|---|---|
| Outer Dia a | 4.3307 inch |
| g | 1-7/32 inch |
| r | 0.098 inch |
| B | 1.937 inch |
| n | 0.748 inch |
| Bearing No | UC20B-26 |
| Housing No | C209 |
