SKU: UCC208T20-SNR
SNR UCC208T20 Metric Cast Iron Cartridge Unit with 40mm Bore Insert 30mm Outside Dia Wide Temperature Version - Allow 2-3 Days
SNR UCC208T20 Metric Cast Iron Cartridge Unit with 40mm Bore Insert 30mm Outside Dia Wide Temperature Version - Allow 2-3 Days
Regular price
Rs. 7,089.68
Regular price
Sale price
Rs. 7,089.68
Taxes included.
In stock
Price Break
5+
Rs. 7,018.78
10+
Rs. 6,735.20
20+
Rs. 6,593.40
50+
Rs. 6,380.71
100+
Rs. 6,238.92
500+
Rs. 5,884.43
1000+
Rs. 4,962.78
Description
Description

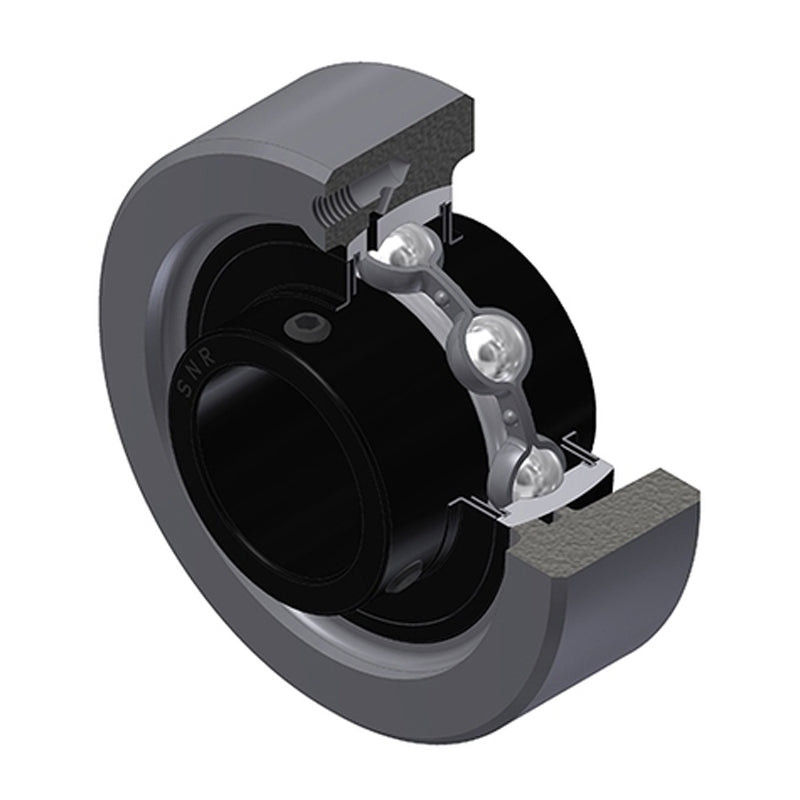

UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 30mm |
| A3 | 1.5mm |
| B | 49.2mm |
| H | 100mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.24 kg |
