SKU: UCC206-20

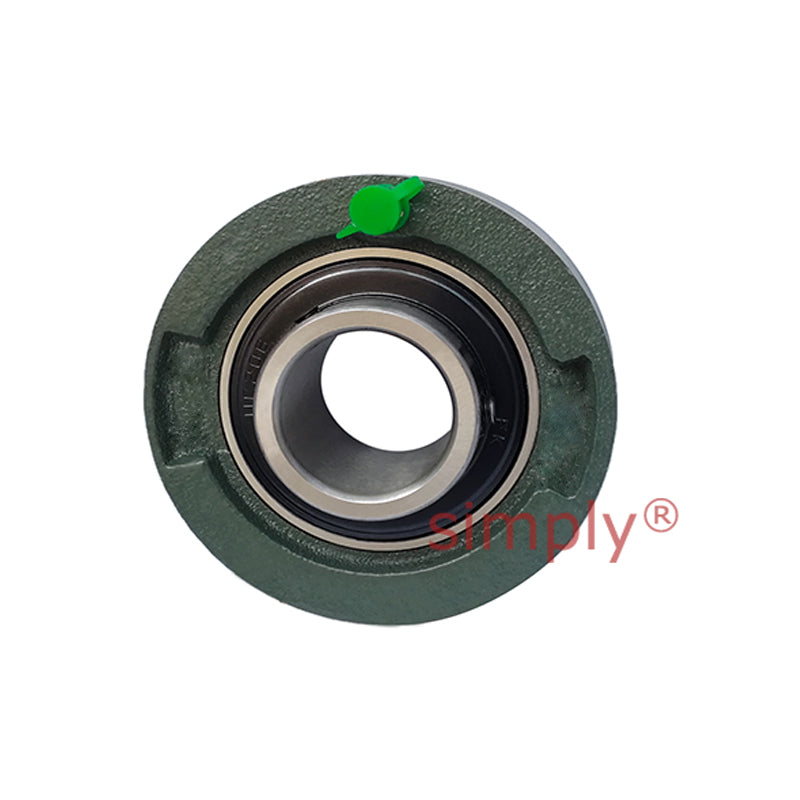

UCC206-20 Imperial Cast Iron Normal Duty Cartridge Unit with 1-7/16 inch Bore Insert 3.3465 inch Outside Dia
UCC206-20 Imperial Cast Iron Normal Duty Cartridge Unit with 1-7/16 inch Bore Insert 3.3465 inch Outside Dia
Regular price
Rs. 2,297.94
Regular price
Sale price
Rs. 2,297.94
Taxes included.
In stock
Price Break
10+
Rs. 2,045.17
19+
Rs. 1,930.27
29+
Rs. 1,907.29
39+
Rs. 1,884.31
49+
Rs. 1,861.33
74+
Rs. 1,838.35
99+
Rs. 1,723.46
199+
Rs. 1,700.48
249+
Rs. 1,677.50
499+
Rs. 1,654.52
999+
Rs. 1,608.56
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Outside Diameter:
- 85.001mm = 3.3465 inch
- Style:
- UCC
Technical
Technical
| Bore d | 1-7/16 inch |
|---|---|
| Outer Dia a | 3.3465 inch |
| g | 1-1/16 inch |
| r | 0.079 inch |
| B | 1.500 inch |
| n | 0.626 inch |
| Bearing No | UC206-20 |
| Housing No | C206 |
