SKU: UCC204-12

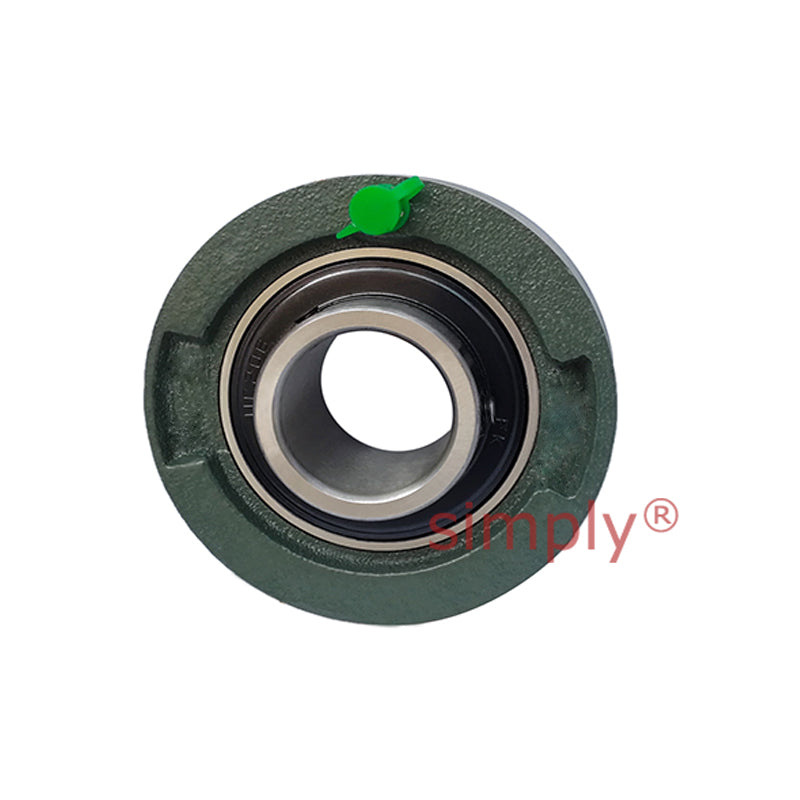

UCC204-12 Imperial Cast Iron Normal Duty Cartridge Unit with 3/4 inch Bore Insert 2.8346 inch Outside Dia
UCC204-12 Imperial Cast Iron Normal Duty Cartridge Unit with 3/4 inch Bore Insert 2.8346 inch Outside Dia
Regular price
Rs. 1,780.74
Regular price
Sale price
Rs. 1,780.74
Taxes included.
In stock
Price Break
10+
Rs. 1,584.86
19+
Rs. 1,495.82
29+
Rs. 1,478.01
39+
Rs. 1,460.21
49+
Rs. 1,442.40
74+
Rs. 1,424.59
99+
Rs. 1,335.56
199+
Rs. 1,317.75
249+
Rs. 1,299.94
499+
Rs. 1,282.13
999+
Rs. 1,246.52
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 71.999mm = 2.8346 inch
- Style:
- UCC
Technical
Technical
| Bore d | 3/4 inch |
|---|---|
| Outer Dia a | 2.8346 inch |
| g | 25/32 inch |
| r | 0.079 inch |
| B | 1.2205 inch |
| n | 0.5 inch |
| Bearing No | UC204-12 |
| Housing No | C204 |
