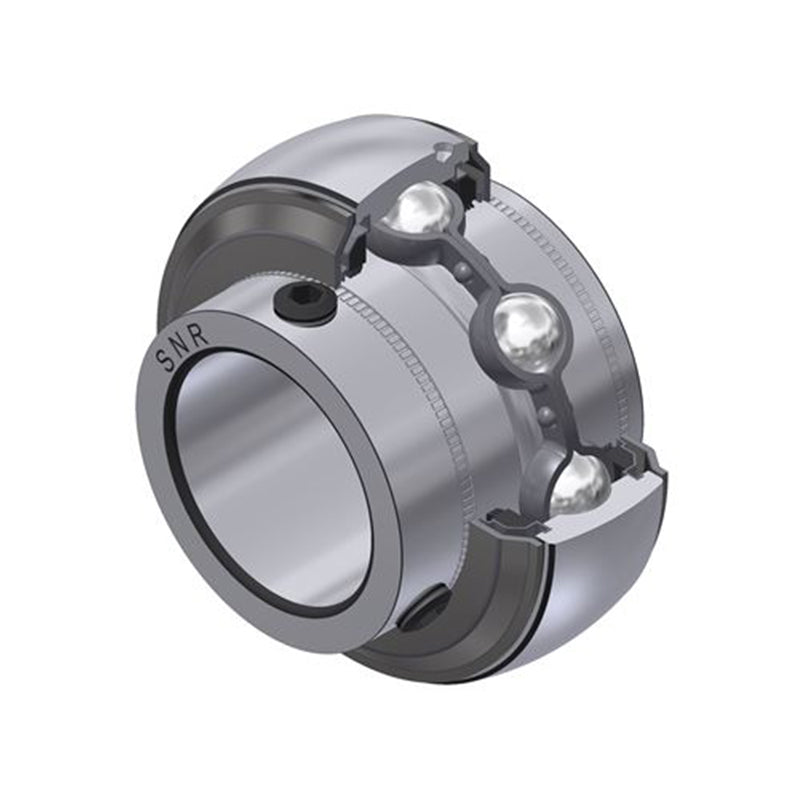

SNR UC206AGR Metric Full Width Spherical Outer Agricultural Bearing Insert 30mm Bore 62mm Outside Diameter with Grub Screws - Allow 2-3 Days

SNR UC-AGR Full Width Spherical Outer Bearing Insert with Grub Screws and Triple Lip Seals: This bearing insert is engineered for demanding environments, featuring a high-performance AGR seal system on each side of the insert to combat heavily dirt-contaminated conditions. Each insert boasts a wide inner ring design and a service-free design with 90% grease filling, ensuring maintenance-free operation. It includes a zinc-coated steel sheet retainer with a vulcanized triple lip seal, where the lips from NBR are axially preloaded and angled outwards. The triple lip seal is fully covered by a robust steel protector, with the zinc-coated impact shield additionally equipped with a lip seal and strongly secured on a knurled seat. This insert is designed for extremely polluted environments, offering shock resistance, suitability for low rotation speeds, and resistance to high-pressure washing. However, it incurs higher friction and is not suitable for use in all standard housings.
Benefits: High-quality brand, high-performance, triple lip sealed

Brand / Quality:

SNR - High Quality

Thread Size:

M6x1

Inside Diameter:

30mm

Outside Diameter:

62mm

Width:

39mm

Style:

UC

Type:

Spherical Outer
