SKU: UC.310

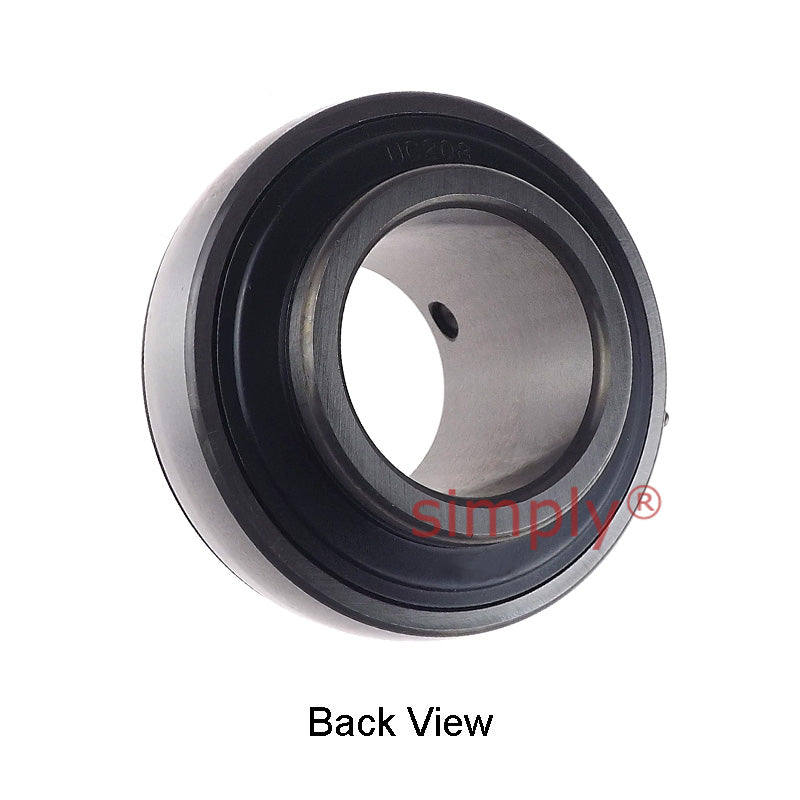

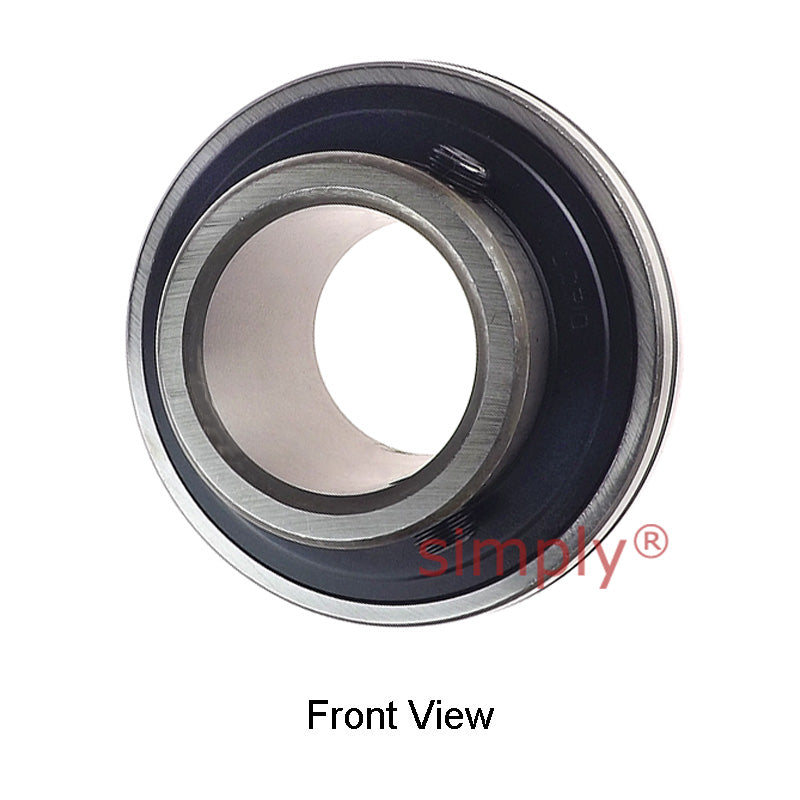

UC310 Heavy Duty Metric Bearing Insert With 50mm Bore 110mm Outside Dia
UC310 Heavy Duty Metric Bearing Insert With 50mm Bore 110mm Outside Dia
Regular price
Rs. 1,528.54
Regular price
Sale price
Rs. 1,528.54
Taxes included.
In stock
Price Break
10+
Rs. 1,360.40
19+
Rs. 1,283.97
29+
Rs. 1,268.69
39+
Rs. 1,253.40
49+
Rs. 1,238.12
74+
Rs. 1,222.83
99+
Rs. 1,146.41
199+
Rs. 1,131.12
249+
Rs. 1,115.83
499+
Rs. 1,100.55
999+
Rs. 1,069.98
Description
Description
|
UC300 Series Bearing Insert: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required. Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Style:
- UC
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| Bi | 61mm |
| Be | 32mm |
| n | 22mm |
| m | 39mm |
| G | 12mm |
| Grub screw | M12x1.5 |
| Weight | 1.69 kg |
| Dynamic load | 4850 kgf |
| Static load | 3640 kgf |
