SKU: UC.217-55

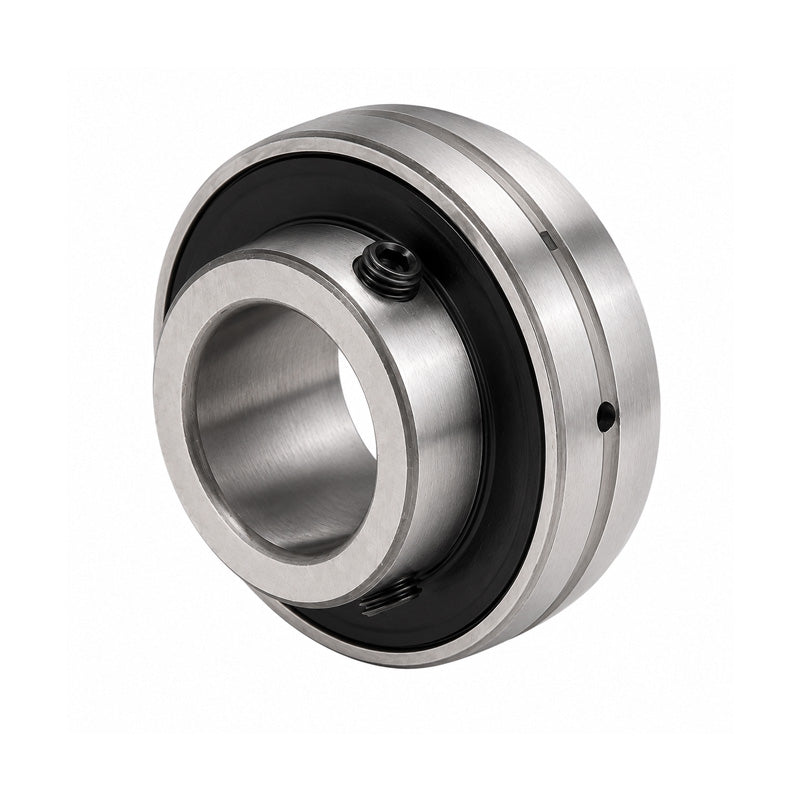

UC217-55 Imperial Bearing Insert with 3-7/16 inch Bore 150mm Outside Dia
UC217-55 Imperial Bearing Insert with 3-7/16 inch Bore 150mm Outside Dia
Regular price
Rs. 19,302.26
ex VAT
Regular price
Sale price
Rs. 19,302.26
ex VAT
In stock
Price Break
10+
Rs. 17,179.01
19+
Rs. 16,213.90
29+
Rs. 16,020.88
39+
Rs. 15,827.85
49+
Rs. 15,634.83
74+
Rs. 15,441.81
99+
Rs. 14,476.70
199+
Rs. 14,283.67
249+
Rs. 14,090.65
499+
Rs. 13,897.63
999+
Rs. 13,511.58
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 87.31mm = 3.437 (3-7/16) inch
- Outside Diameter:
- 150mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 3-7/16 inch |
|---|---|
| D | 150mm |
| Bi | 85mm |
| Be | 35mm |
| n | 34.1mm |
| m | 51.6mm |
| G | 14mm |
| Grub screw | M12x1.5 |
| Weight | 3.45 kg |
| Dynamic load | 6600 kgf |
| Static load | 5320 kgf |
