SKU: UC.217-52

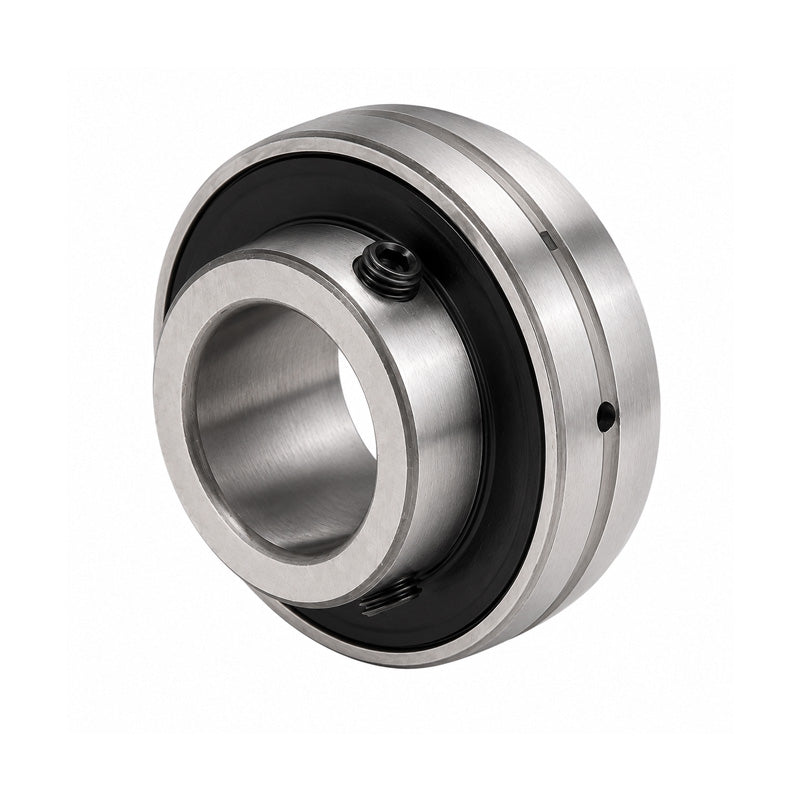

UC217-52 Imperial Bearing Insert with 3-1/4 inch Bore 150mm Outside Dia
UC217-52 Imperial Bearing Insert with 3-1/4 inch Bore 150mm Outside Dia
Regular price
Rs. 17,954.82
ex VAT
Regular price
Sale price
Rs. 17,954.82
ex VAT
In stock
Price Break
10+
Rs. 15,979.79
19+
Rs. 15,082.05
29+
Rs. 14,902.50
39+
Rs. 14,722.95
49+
Rs. 14,543.40
74+
Rs. 14,363.86
99+
Rs. 13,466.12
199+
Rs. 13,286.57
249+
Rs. 13,107.02
499+
Rs. 12,927.47
999+
Rs. 12,568.37
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Outside Diameter:
- 150mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 3-1/4 inch |
|---|---|
| D | 150mm |
| Bi | 85mm |
| Be | 35mm |
| n | 34.1mm |
| m | 51.6mm |
| G | 14mm |
| Grub screw | 7/16"-20 UNF |
| Weight | 3.66 kg |
| Dynamic load | 6600 kgf |
| Static load | 5320 kgf |
