SKU: UC.215-48.TS.CHAL

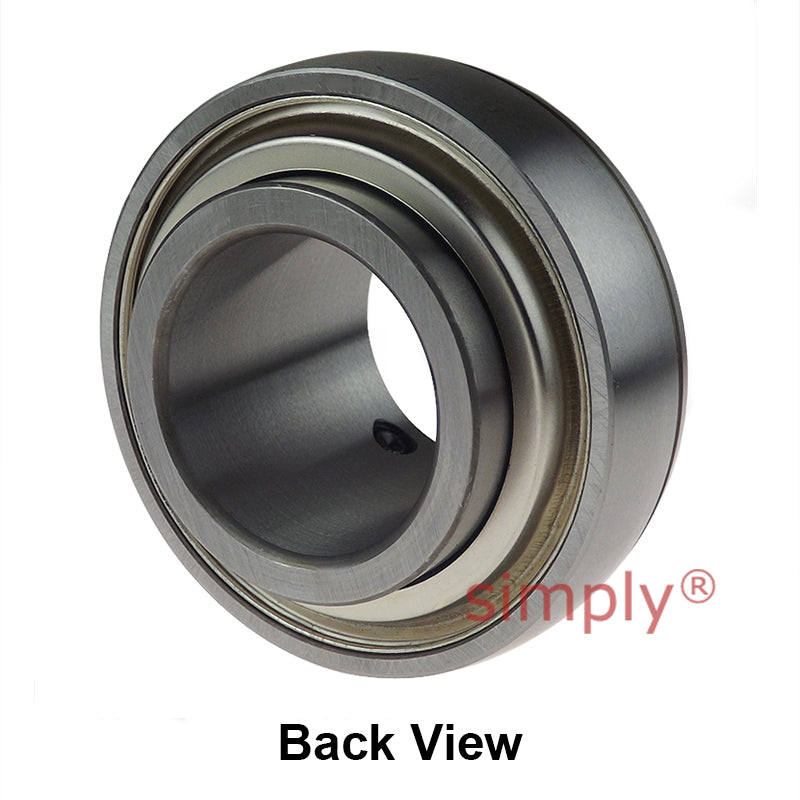

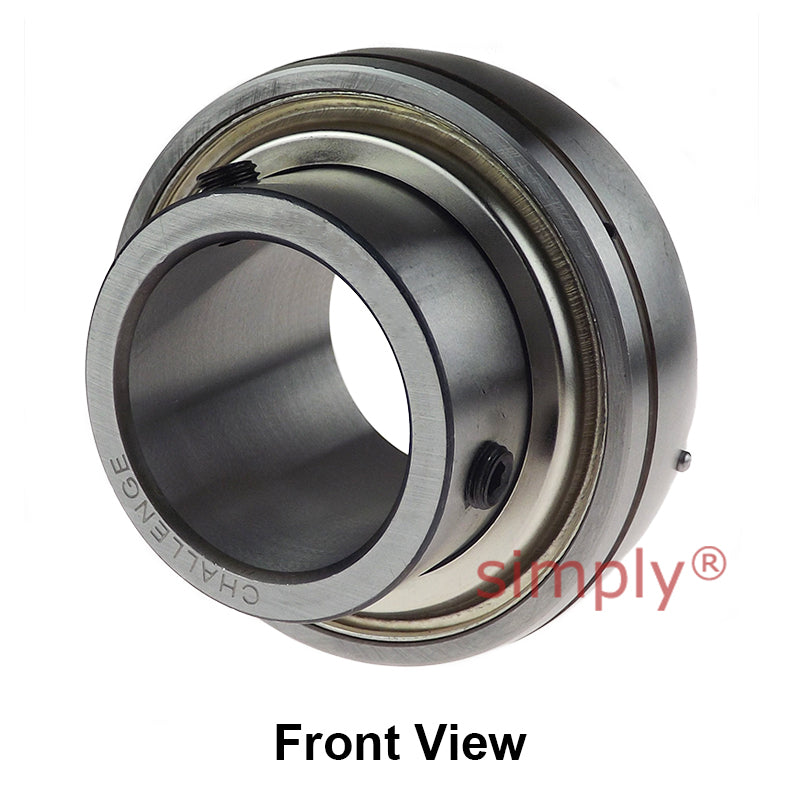

Challenge UC215-48 Imperial Insert with Grub Screws with 3 inch Bore 130mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC215-48 Imperial Insert with Grub Screws with 3 inch Bore 130mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
Rs. 20,568.78
Regular price
Sale price
Rs. 20,568.78
Taxes included.
Equivalent to: UC.215-48
In stock
Price Break
10+
Rs. 18,306.21
19+
Rs. 17,277.78
29+
Rs. 17,072.09
39+
Rs. 16,866.40
49+
Rs. 16,660.71
74+
Rs. 16,455.02
99+
Rs. 15,426.59
199+
Rs. 15,220.90
249+
Rs. 15,015.21
499+
Rs. 14,809.52
999+
Rs. 14,398.15
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UC.215-48
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- UC
Technical
Technical
| Shaft Diameter d | 3 inch |
|---|---|
| Outside Diameter D | 130mm |
| Overall Width Bi | 77.8mm |
| Inner Race Width Be | 32mm |
| Back of Bearing to Centre Line n | 33.3mm |
| Front of Bearing to Centre Line m | 44.5mm |
| Dimension G | 12mm |
| Grub Screws x 2 | 7/16 - 20UNF inch |
| Load Rating (Dynamic) | 5190kg |
| Load Rating (Static) | 4190kg |
| Max Speed | 1200 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
