SKU: UC.215-48

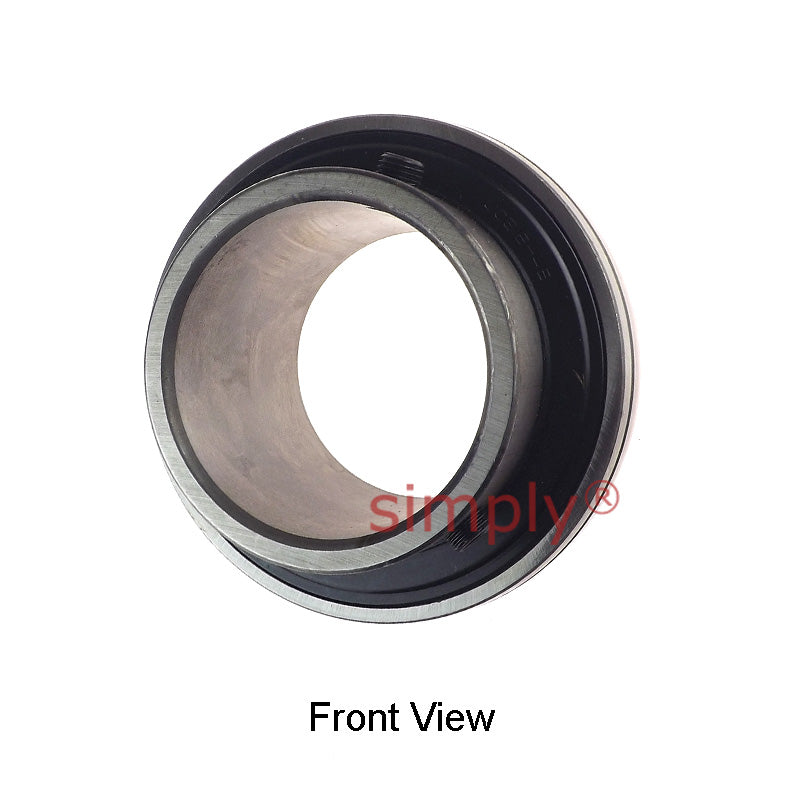

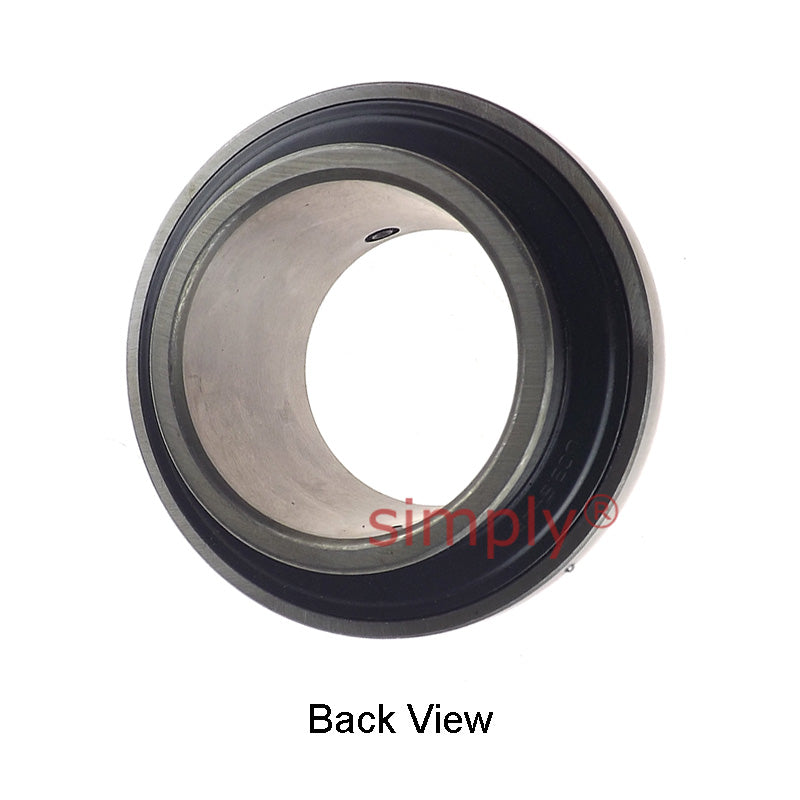

UC215-48 Imperial Bearing Insert with 3 inch Bore 130mm Outside Dia
UC215-48 Imperial Bearing Insert with 3 inch Bore 130mm Outside Dia
Regular price
Rs. 4,833.99
Regular price
Sale price
Rs. 4,833.99
Taxes included.
In stock
Price Break
10+
Rs. 4,302.25
19+
Rs. 4,060.55
29+
Rs. 4,012.21
39+
Rs. 3,963.87
49+
Rs. 3,915.53
74+
Rs. 3,867.19
99+
Rs. 3,625.49
199+
Rs. 3,577.15
249+
Rs. 3,528.81
499+
Rs. 3,480.47
999+
Rs. 3,383.79
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Outside Diameter:
- 130mm
- Style:
- UC
Technical
Technical
| d | 3 inch |
|---|---|
| D | 130mm |
| Bi | 77.8mm |
| Be | 30mm |
| n | 33.3mm |
| m | 44.5mm |
| G | 12mm |
| Grub screw | 7/16"-20 UNF |
| Weight | 2.12 kg |
| Dynamic load | 5190 kgf |
| Static load | 4190 kgf |
