SKU: UC.213

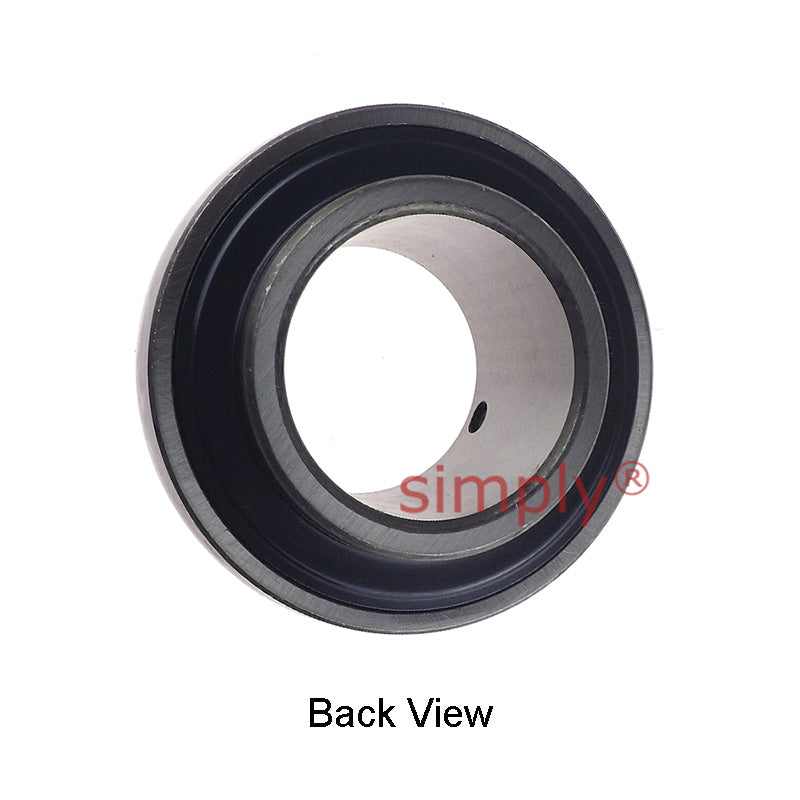

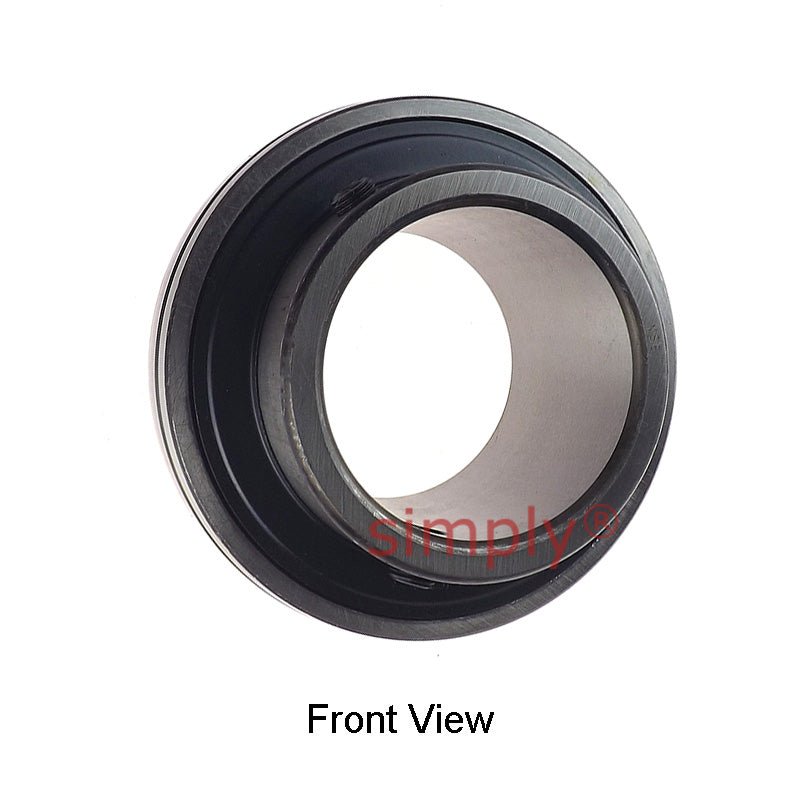

UC213 Metric Bearing Insert with 65mm Bore 120mm Outside Dia
UC213 Metric Bearing Insert with 65mm Bore 120mm Outside Dia
Regular price
Rs. 1,289.15
Regular price
Sale price
Rs. 1,289.15
Taxes included.
In stock
Price Break
10+
Rs. 1,147.34
19+
Rs. 1,082.89
29+
Rs. 1,069.99
39+
Rs. 1,057.10
49+
Rs. 1,044.21
74+
Rs. 1,031.32
99+
Rs. 966.86
199+
Rs. 953.97
249+
Rs. 941.08
499+
Rs. 928.19
999+
Rs. 902.41
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Style:
- UC
Technical
Technical
| d | 65mm |
|---|---|
| D | 120mm |
| Bi | 65.1mm |
| Be | 28mm |
| n | 25.4mm |
| m | 39.7mm |
| G | 10mm |
| Grub screw | M10x1.0 |
| Weight | 1.86 kg |
| Dynamic load | 4480 kgf |
| Static load | 3470 kgf |
