SKU: UC.212-36.TS.CHAL

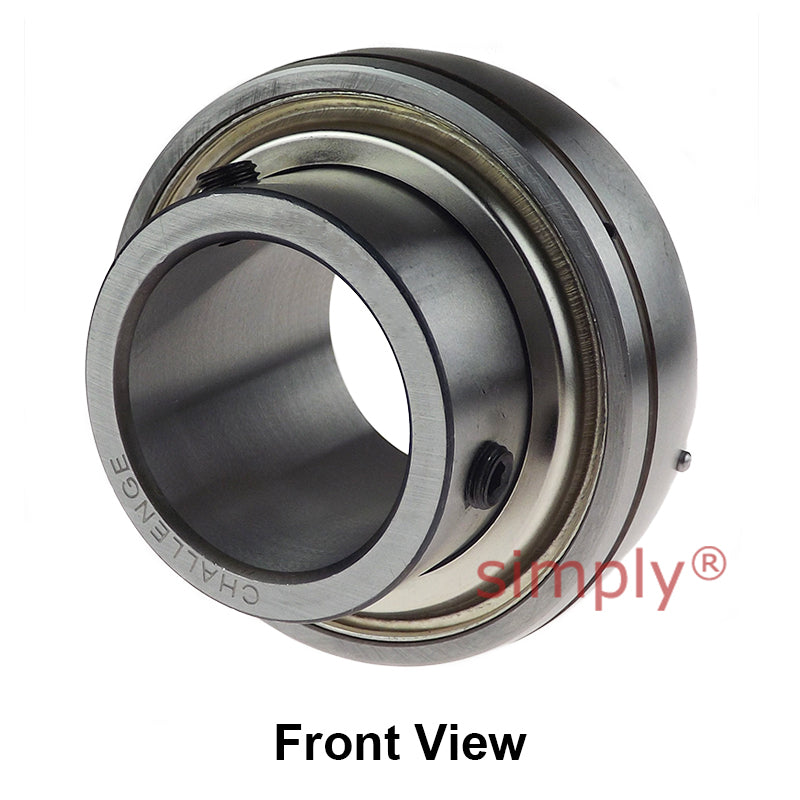

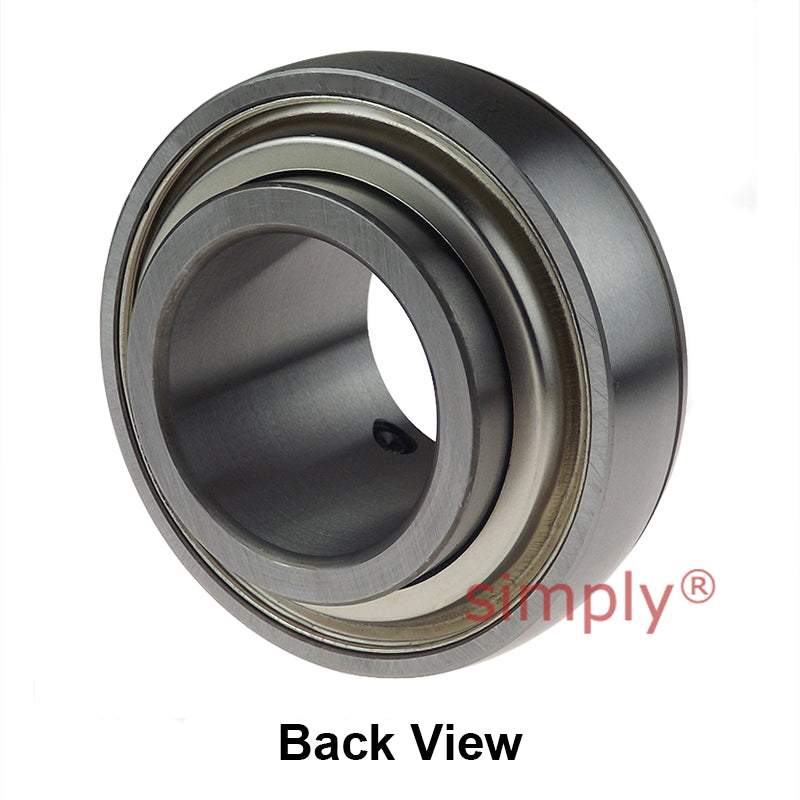

Challenge UC212-36 Imperial Insert with Grub Screws with 2-1/4 inch Bore 110mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC212-36 Imperial Insert with Grub Screws with 2-1/4 inch Bore 110mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
Rs. 10,521.86
Regular price
Sale price
Rs. 10,521.86
Taxes included.
Equivalent to: UC.212-36
In stock
Price Break
10+
Rs. 9,364.46
19+
Rs. 8,838.36
29+
Rs. 8,733.14
39+
Rs. 8,627.93
49+
Rs. 8,522.71
74+
Rs. 8,417.49
99+
Rs. 7,891.40
199+
Rs. 7,786.18
249+
Rs. 7,680.96
499+
Rs. 7,575.74
999+
Rs. 7,365.30
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UC.212-36
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Style:
- UC
Technical
Technical
| Shaft Diameter d | 2-1/4 inch |
|---|---|
| Outside Diameter D | 110mm |
| Overall Width Bi | 65.1mm |
| Inner Race Width Be | 27mm |
| Back of Bearing to Centre Line n | 25.4mm |
| Front of Bearing to Centre Line m | 39.7mm |
| Dimension G | 10mm |
| Grub Screws x 2 | 3/8 - 24UNF inch |
| Load Rating (Dynamic) | 4100kg |
| Load Rating (Static) | 3150kg |
| Max Speed | 1500 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
