SKU: UC.212-36

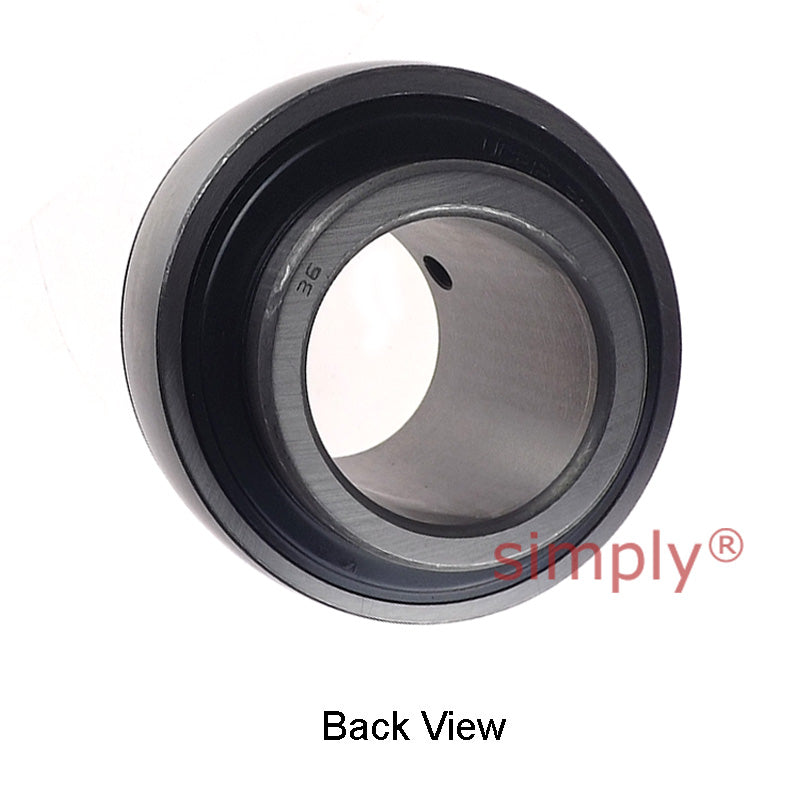

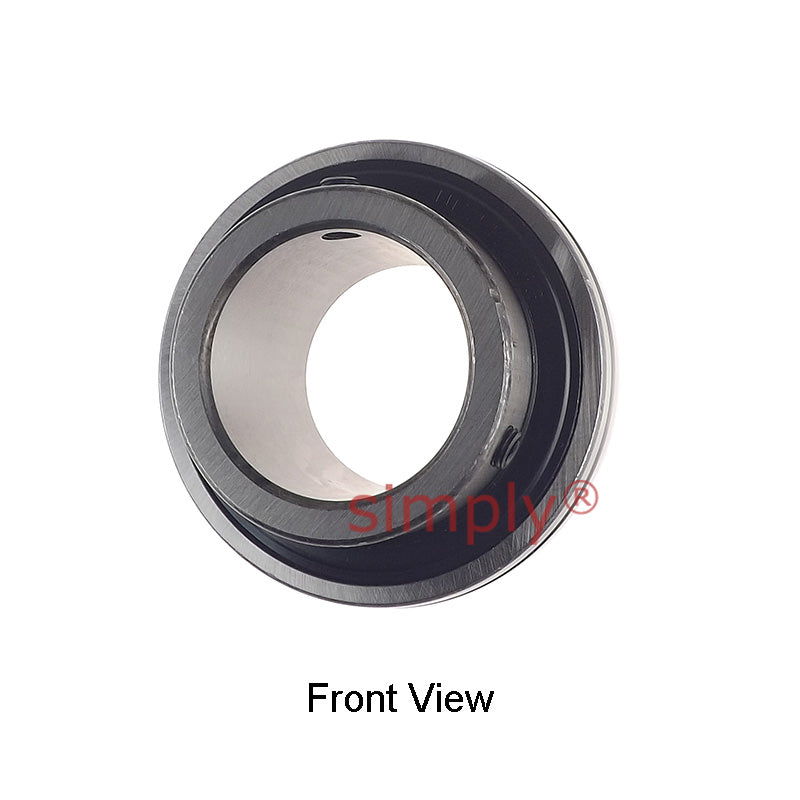

UC212-36 Imperial Bearing Insert with 2-1/4 inch Bore 110mm Outside Dia
UC212-36 Imperial Bearing Insert with 2-1/4 inch Bore 110mm Outside Dia
Regular price
Rs. 1,844.75
Regular price
Sale price
Rs. 1,844.75
Taxes included.
In stock
Price Break
10+
Rs. 1,641.83
19+
Rs. 1,549.59
29+
Rs. 1,531.14
39+
Rs. 1,512.70
49+
Rs. 1,494.25
74+
Rs. 1,475.80
99+
Rs. 1,383.56
199+
Rs. 1,365.12
249+
Rs. 1,346.67
499+
Rs. 1,328.22
999+
Rs. 1,291.33
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Outside Diameter:
- 110mm
- Style:
- UC
Technical
Technical
| d | 2-1/4 inch |
|---|---|
| D | 110mm |
| Bi | 65.1mm |
| Be | 27mm |
| n | 25.4mm |
| m | 39.7mm |
| G | 10mm |
| Grub screw | 3/8"-24 UNF |
| Weight | 1.67 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
