SKU: UC.212

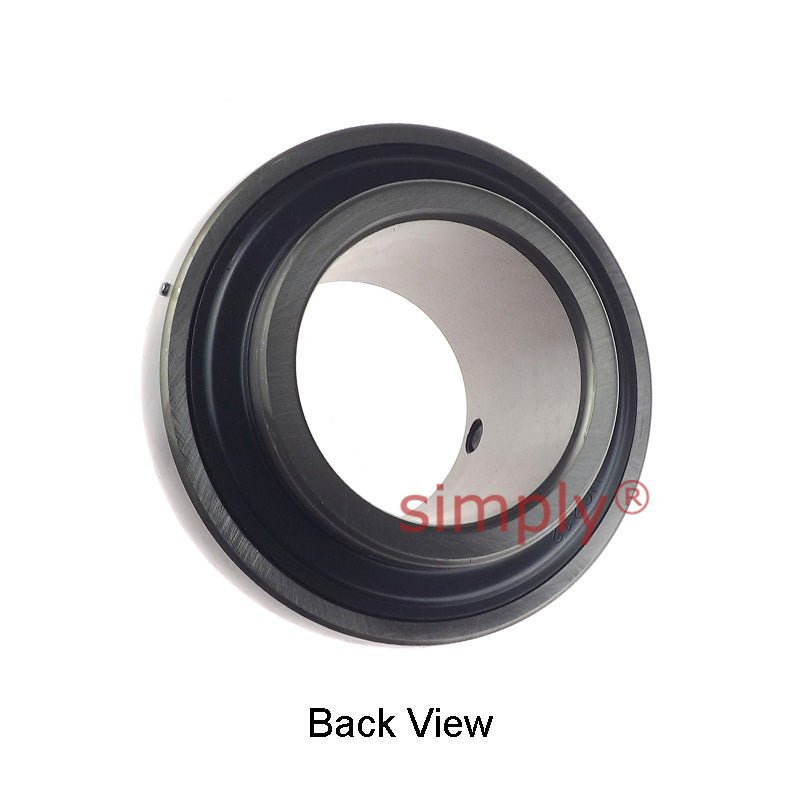

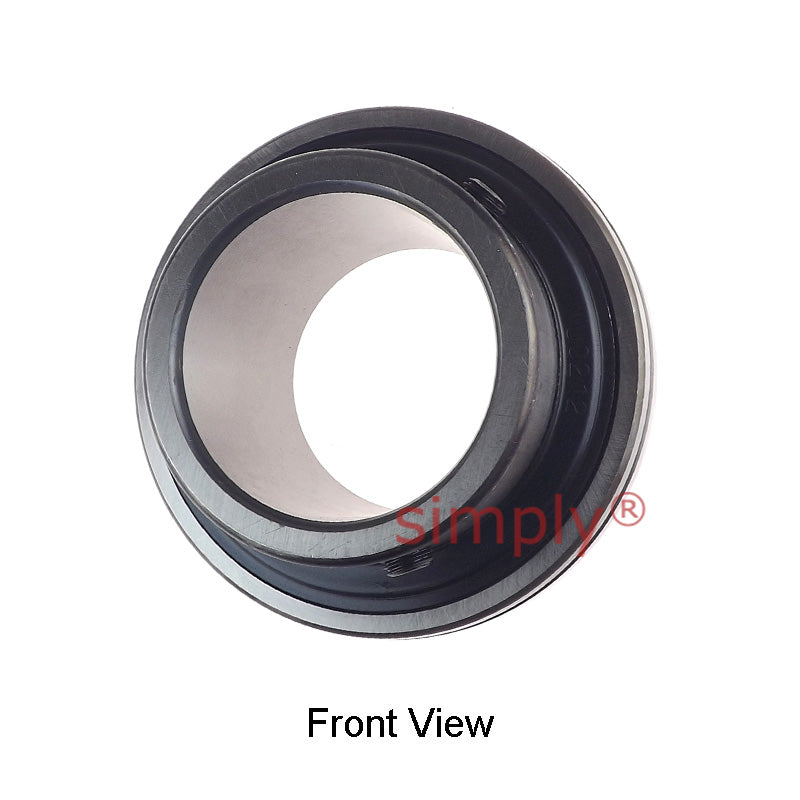

UC212 Metric Bearing Insert with 60mm Bore 110mm Outside Dia
UC212 Metric Bearing Insert with 60mm Bore 110mm Outside Dia
Regular price
Rs. 3,898.17
Regular price
Sale price
Rs. 3,898.17
Taxes included.
Equivalent to: 1060-60G
In stock
Price Break
10+
Rs. 3,469.37
19+
Rs. 3,274.46
29+
Rs. 3,235.48
39+
Rs. 3,196.50
49+
Rs. 3,157.52
74+
Rs. 3,118.54
99+
Rs. 2,923.63
199+
Rs. 2,884.65
249+
Rs. 2,845.66
499+
Rs. 2,806.68
999+
Rs. 2,728.72
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1060-60G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Style:
- UC
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| Bi | 65.1mm |
| Be | 27mm |
| n | 25.4mm |
| m | 39.7mm |
| G | 10mm |
| Grub screw | M10x1.0 |
| Weight | 1.45 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
| Rec max speed | 2800 rpm |
