SKU: UC.211-34

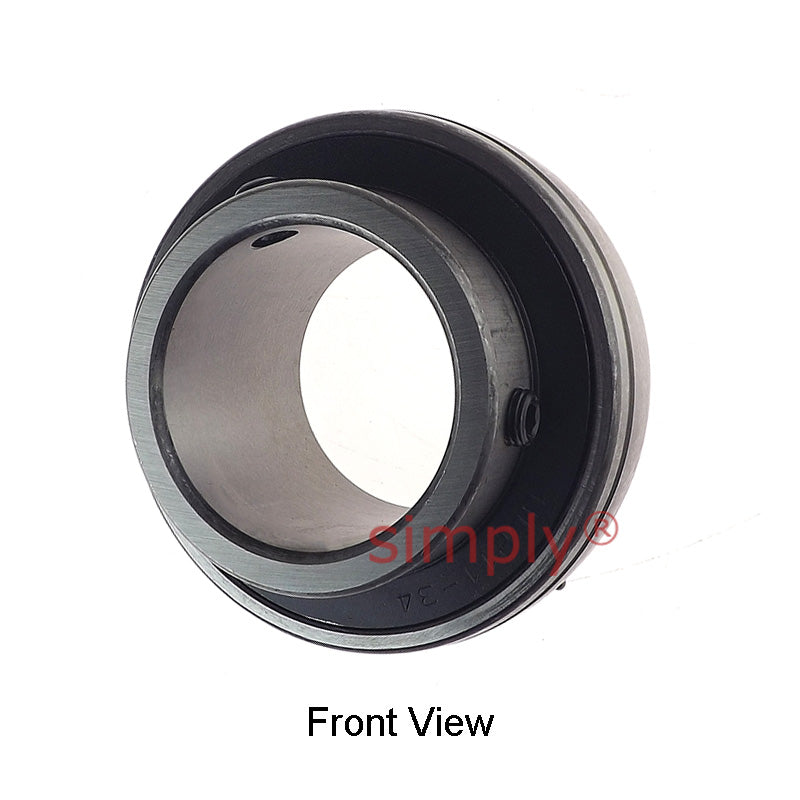

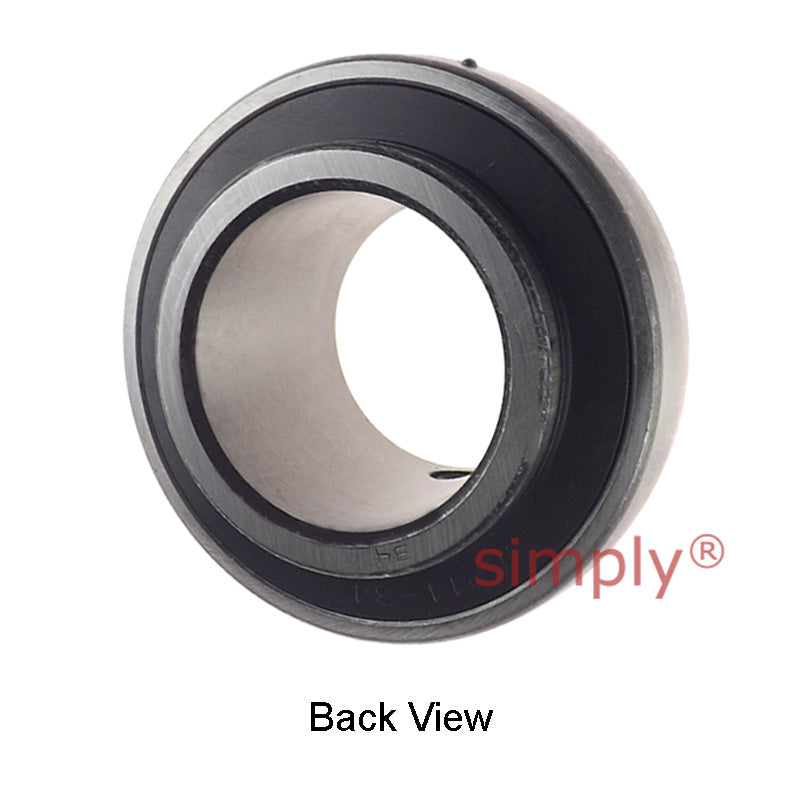

UC211-34 Imperial Bearing Insert with 2-1/8 inch Bore 100mm Outside Dia
UC211-34 Imperial Bearing Insert with 2-1/8 inch Bore 100mm Outside Dia
Regular price
Rs. 3,305.44
Regular price
Sale price
Rs. 3,305.44
Taxes included.
In stock
Price Break
10+
Rs. 2,941.84
19+
Rs. 2,776.57
29+
Rs. 2,743.52
39+
Rs. 2,710.46
49+
Rs. 2,677.41
74+
Rs. 2,644.35
99+
Rs. 2,479.08
199+
Rs. 2,446.03
249+
Rs. 2,412.97
499+
Rs. 2,379.92
999+
Rs. 2,313.81
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Outside Diameter:
- 100mm
- Style:
- UC
Technical
Technical
| d | 2-1/8 inch |
|---|---|
| D | 100mm |
| Bi | 55.6mm |
| Be | 25mm |
| n | 22.2mm |
| m | 33.4mm |
| G | 10mm |
| Grub screw | 3/8-24 UNF |
| Weight | 1.15 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
