SKU: UC.211

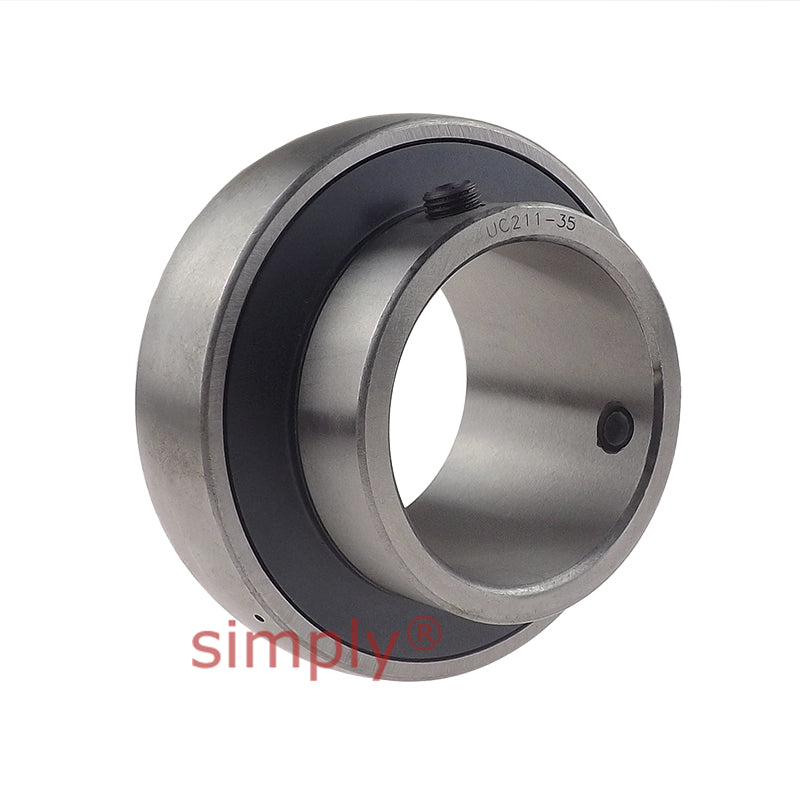

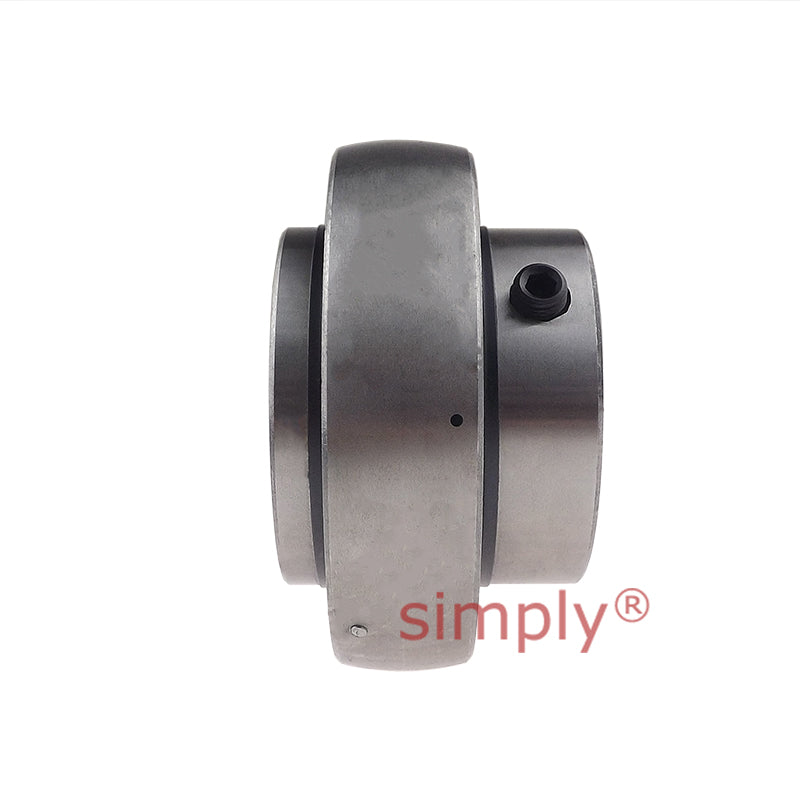

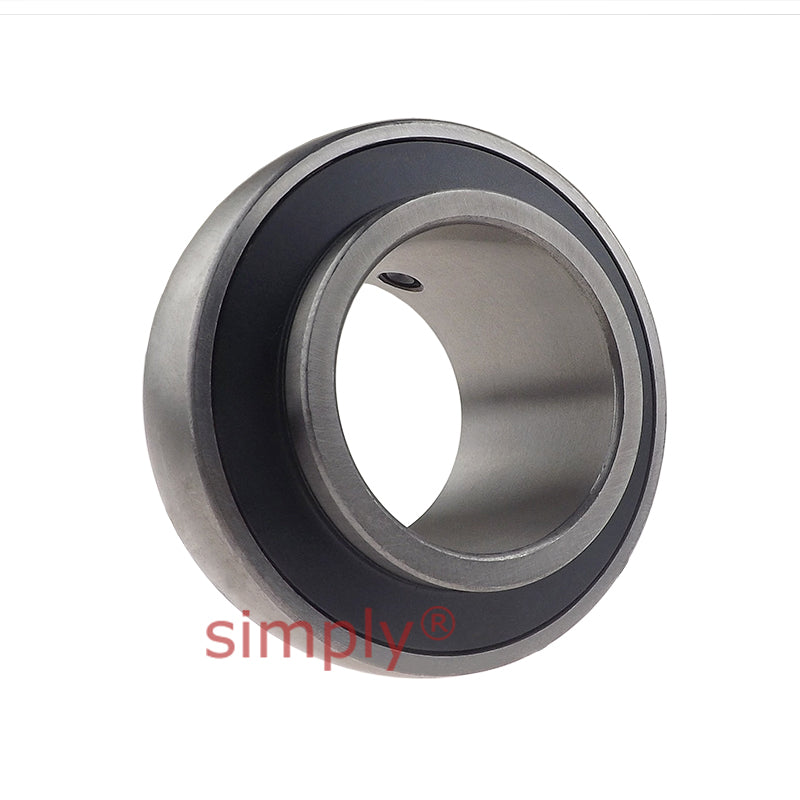

UC211 Metric Bearing Insert with 55mm Bore 100mm Outside Dia
UC211 Metric Bearing Insert with 55mm Bore 100mm Outside Dia
Regular price
Rs. 3,018.68
Regular price
Sale price
Rs. 3,018.68
Taxes included.
Equivalent to: 1055-55G
In stock
Price Break
10+
Rs. 2,686.63
19+
Rs. 2,535.69
29+
Rs. 2,505.50
39+
Rs. 2,475.32
49+
Rs. 2,445.13
74+
Rs. 2,414.94
99+
Rs. 2,264.01
199+
Rs. 2,233.82
249+
Rs. 2,203.64
499+
Rs. 2,173.45
999+
Rs. 2,113.08
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1055-55G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Style:
- UC
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| Bi | 55.6mm |
| Be | 25mm |
| n | 22.2mm |
| m | 33.4mm |
| G | 10mm |
| Grub screw | M10x1.0 |
| Weight | 1.09 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
| Rec max speed | 3100 rpm |
