SKU: UC.210-32

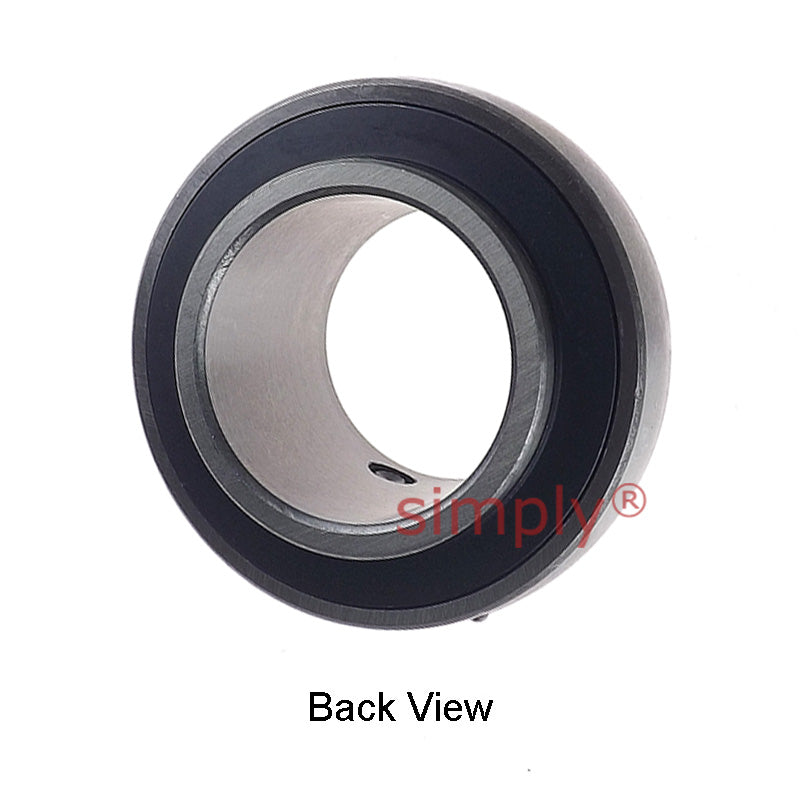

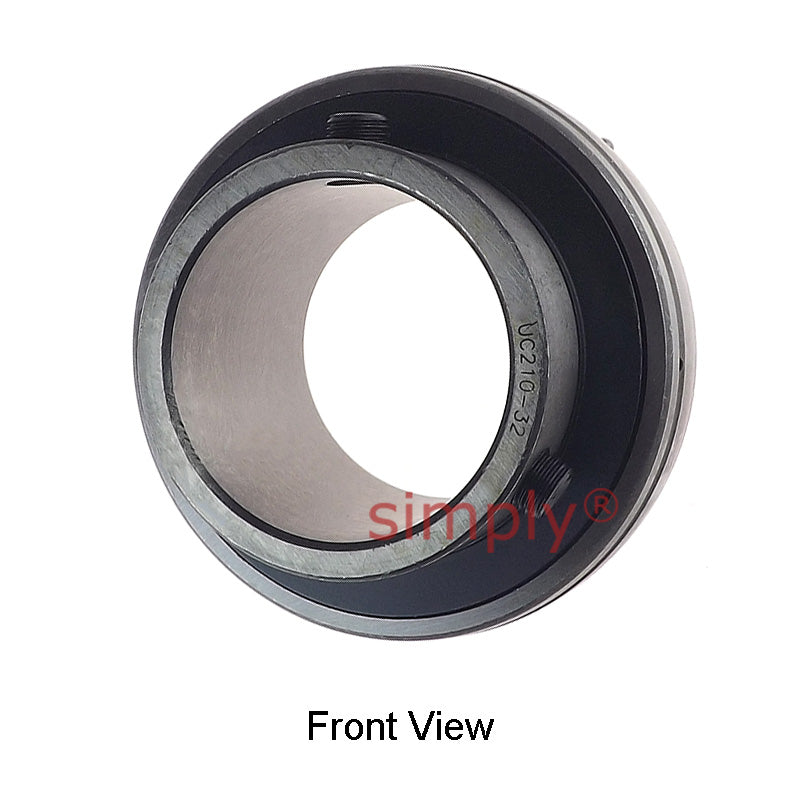

UC210-32 Imperial Bearing Insert with 2 inch Bore 90mm Outside Dia
UC210-32 Imperial Bearing Insert with 2 inch Bore 90mm Outside Dia
Regular price
Rs. 2,004.69
ex VAT
Regular price
Sale price
Rs. 2,004.69
ex VAT
Equivalent to: 1050-2G
In stock
Price Break
10+
Rs. 1,784.17
19+
Rs. 1,683.94
29+
Rs. 1,663.89
39+
Rs. 1,643.85
49+
Rs. 1,623.80
74+
Rs. 1,603.75
99+
Rs. 1,503.52
199+
Rs. 1,483.47
249+
Rs. 1,463.42
499+
Rs. 1,443.38
999+
Rs. 1,403.28
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1050-2G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 90mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 2 inch |
|---|---|
| D | 90mm |
| Bi | 51.6mm |
| Be | 24mm |
| n | 19mm |
| m | 32.6mm |
| G | 10mm |
| Grub screw | 3/8"-24 UNF |
| Weight | 0.82 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
| Rec max speed | 3400 rpm |
