SKU: UC.209-28

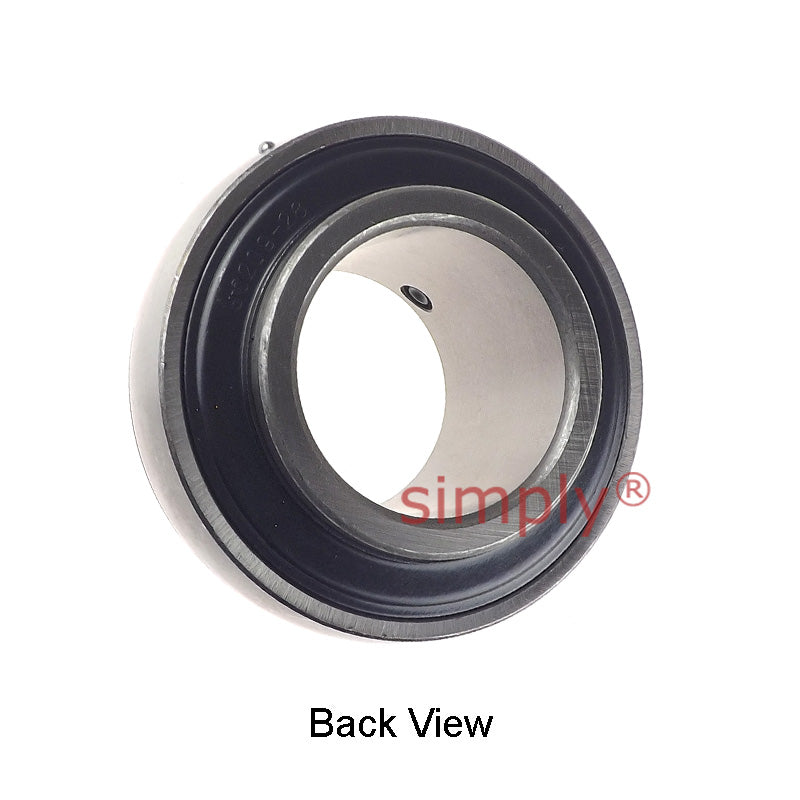

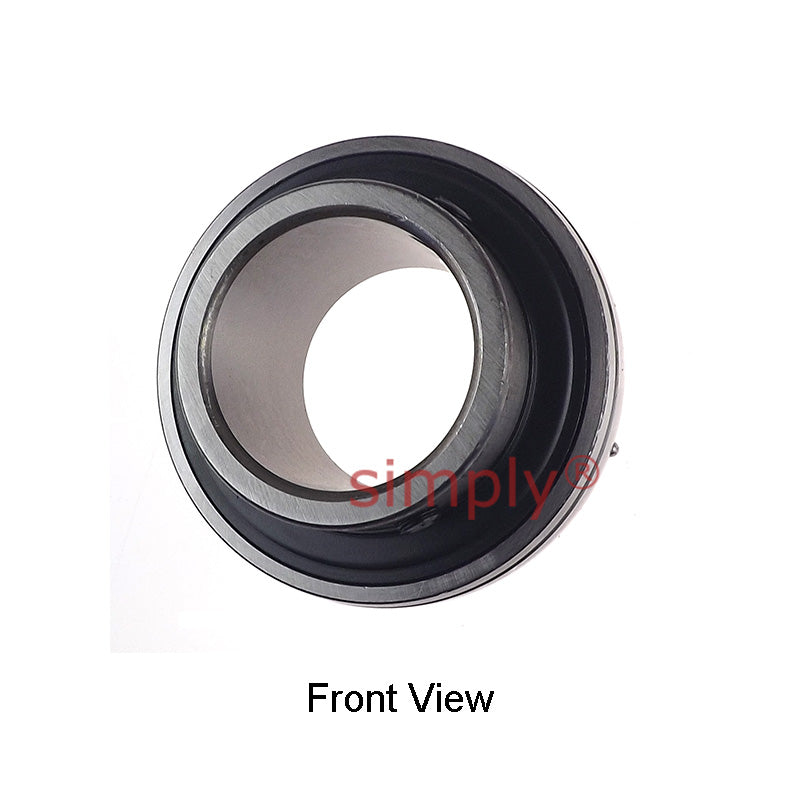

UC209-28 Imperial Bearing Insert with 1-3/4 inch Bore 85mm Outside Dia
UC209-28 Imperial Bearing Insert with 1-3/4 inch Bore 85mm Outside Dia
Regular price
Rs. 1,111.20
Regular price
Sale price
Rs. 1,111.20
Taxes included.
Equivalent to: 1045-1-3/4G
In stock
Price Break
10+
Rs. 988.97
19+
Rs. 933.41
29+
Rs. 922.30
39+
Rs. 911.18
49+
Rs. 900.07
74+
Rs. 888.96
99+
Rs. 833.40
199+
Rs. 822.29
249+
Rs. 811.18
499+
Rs. 800.06
999+
Rs. 777.84
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1045-1-3/4G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 85mm
- Style:
- UC
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| D | 85mm |
| Bi | 49.2mm |
| Be | 22mm |
| n | 19mm |
| m | 30.2mm |
| G | 10mm |
| Grub screw | 5/16"-24 UNF |
| Weight | 0.7 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 3700 rpm |
