SKU: UC.209-26

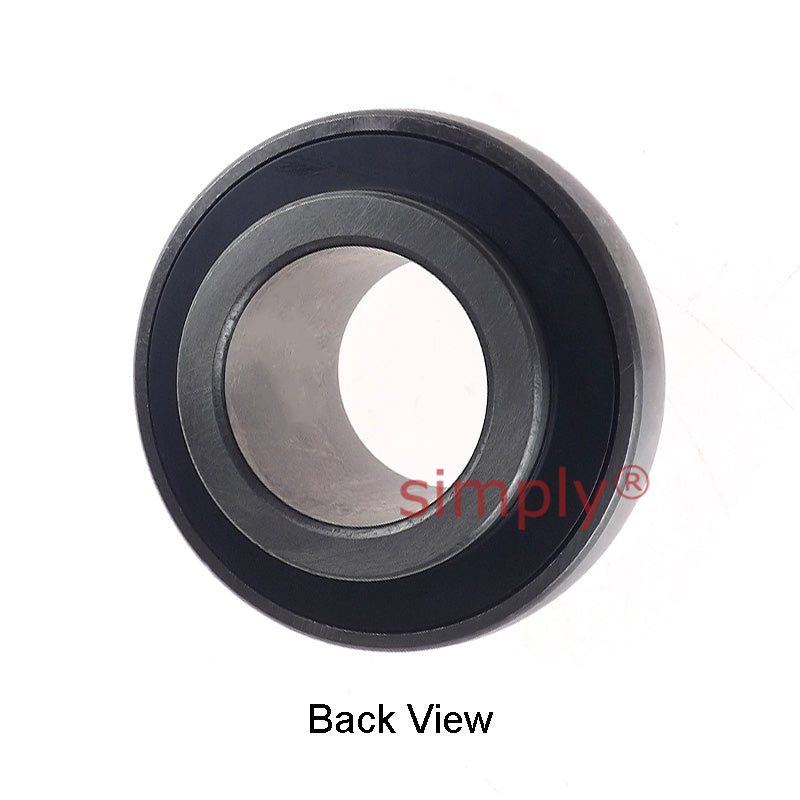

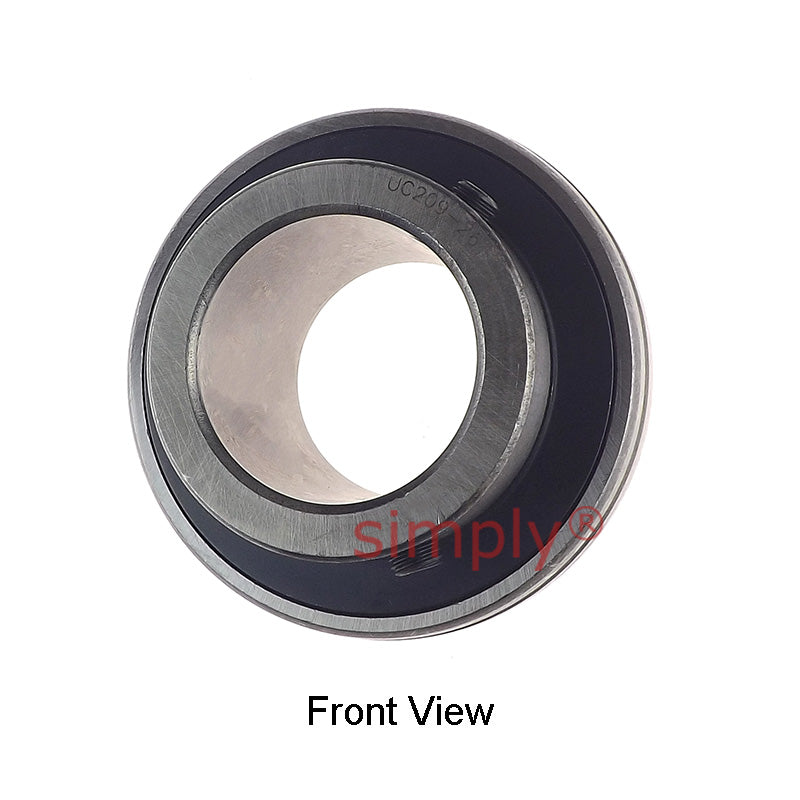

UC209-26 Imperial Bearing Insert with 1-5/8 inch Bore 85mm Outside Dia
UC209-26 Imperial Bearing Insert with 1-5/8 inch Bore 85mm Outside Dia
Regular price
Rs. 1,109.92
Regular price
Sale price
Rs. 1,109.92
Taxes included.
Equivalent to: 1045-1-5/8G
In stock
Price Break
10+
Rs. 987.83
19+
Rs. 932.33
29+
Rs. 921.23
39+
Rs. 910.13
49+
Rs. 899.04
74+
Rs. 887.94
99+
Rs. 832.44
199+
Rs. 821.34
249+
Rs. 810.24
499+
Rs. 799.14
999+
Rs. 776.94
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1045-1-5/8G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Outside Diameter:
- 85mm
- Style:
- UC
Technical
Technical
| d | 1-5/8 inch |
|---|---|
| D | 85mm |
| Bi | 49.2mm |
| Be | 22mm |
| n | 19mm |
| m | 30.2mm |
| G | 10mm |
| Grub screw | 5/16"-24 UNF |
| Weight | 0.78 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 3700 rpm |
