SKU: UC.209

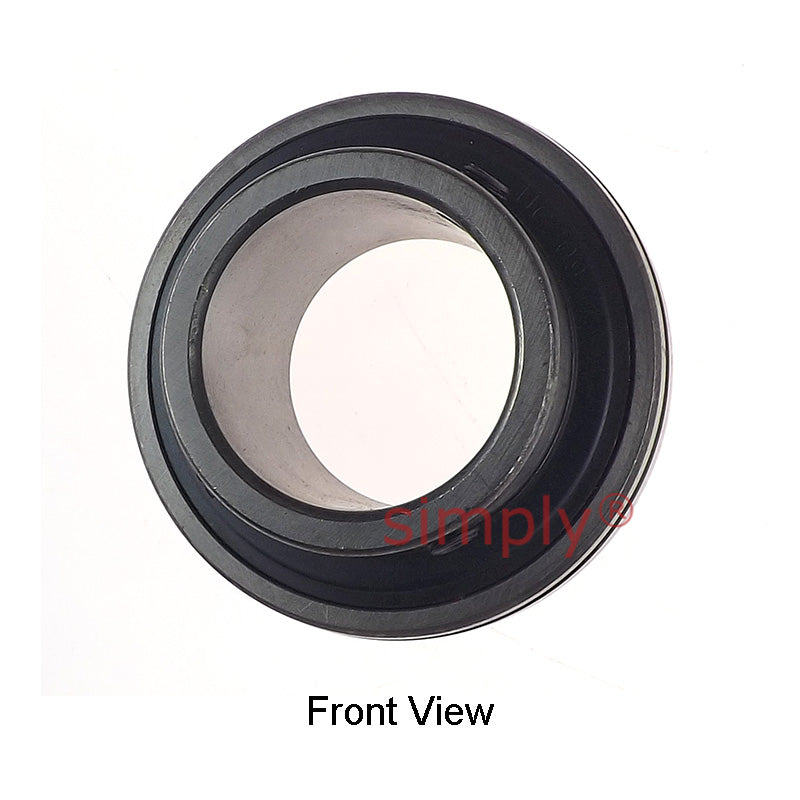

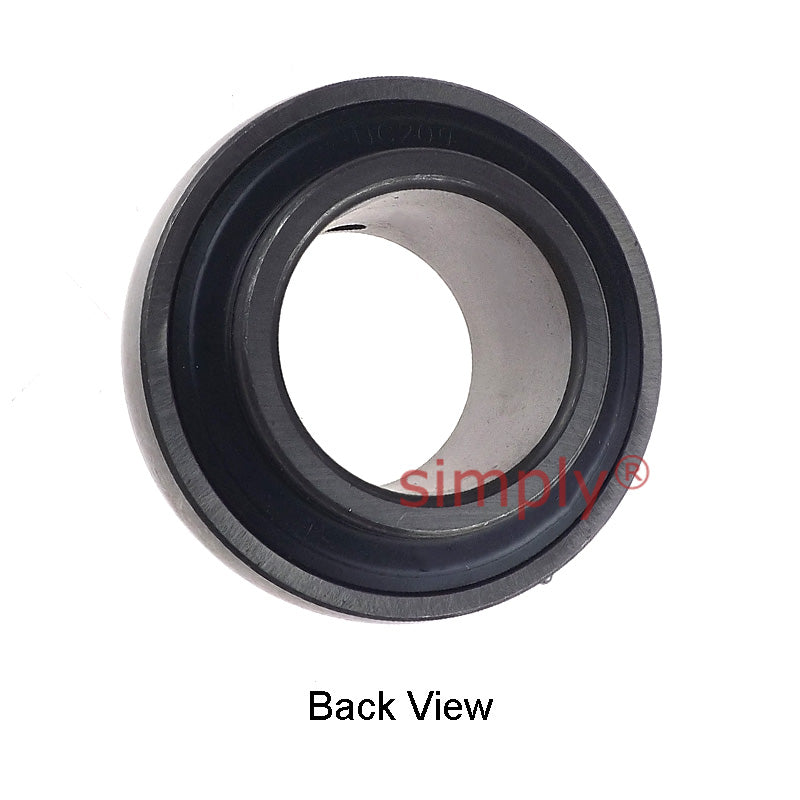

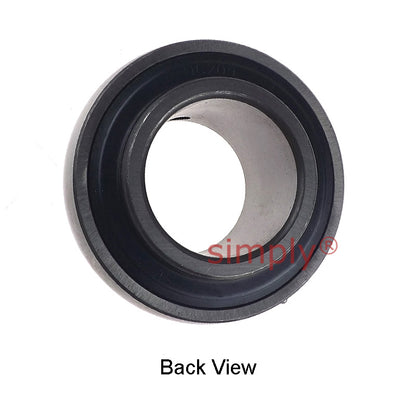

UC209 Metric Bearing Insert with 45mm Bore 85mm Outside Dia
UC209 Metric Bearing Insert with 45mm Bore 85mm Outside Dia
Regular price
Rs. 1,076.64
Regular price
Sale price
Rs. 1,076.64
Taxes included.
Equivalent to: 1045-45G
In stock
Price Break
10+
Rs. 958.21
19+
Rs. 904.38
29+
Rs. 893.61
39+
Rs. 882.84
49+
Rs. 872.08
74+
Rs. 861.31
99+
Rs. 807.48
199+
Rs. 796.71
249+
Rs. 785.95
499+
Rs. 775.18
999+
Rs. 753.65
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1045-45G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Style:
- UC
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| Bi | 49.2mm |
| Be | 22mm |
| n | 19mm |
| m | 30.2mm |
| G | 10mm |
| Grub screw | M8x1.0 |
| Weight | 0.68 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 3700 rpm |
