SKU: UC.208-24.TS.CHAL

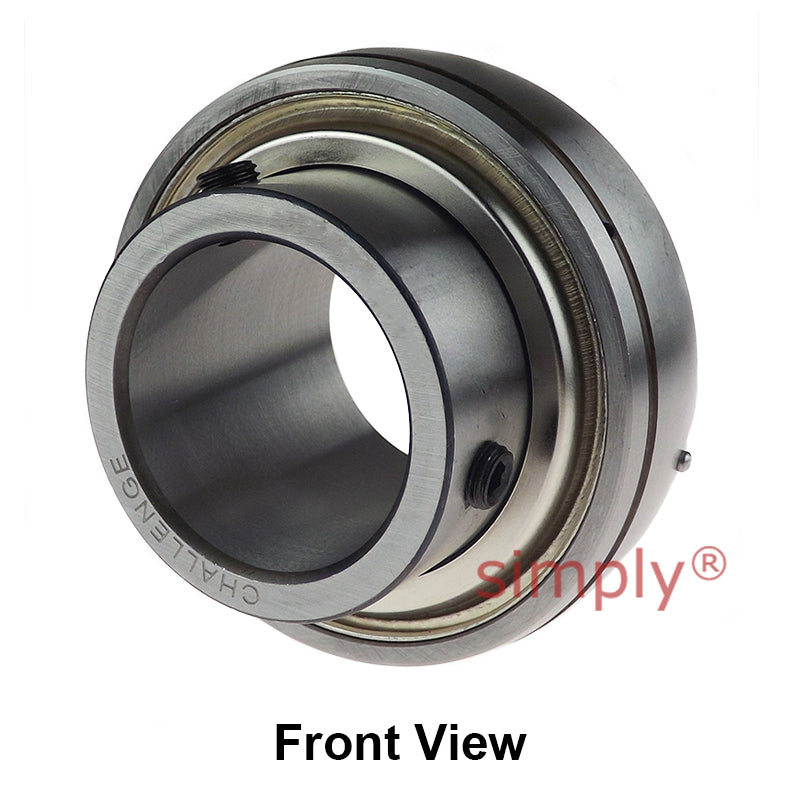

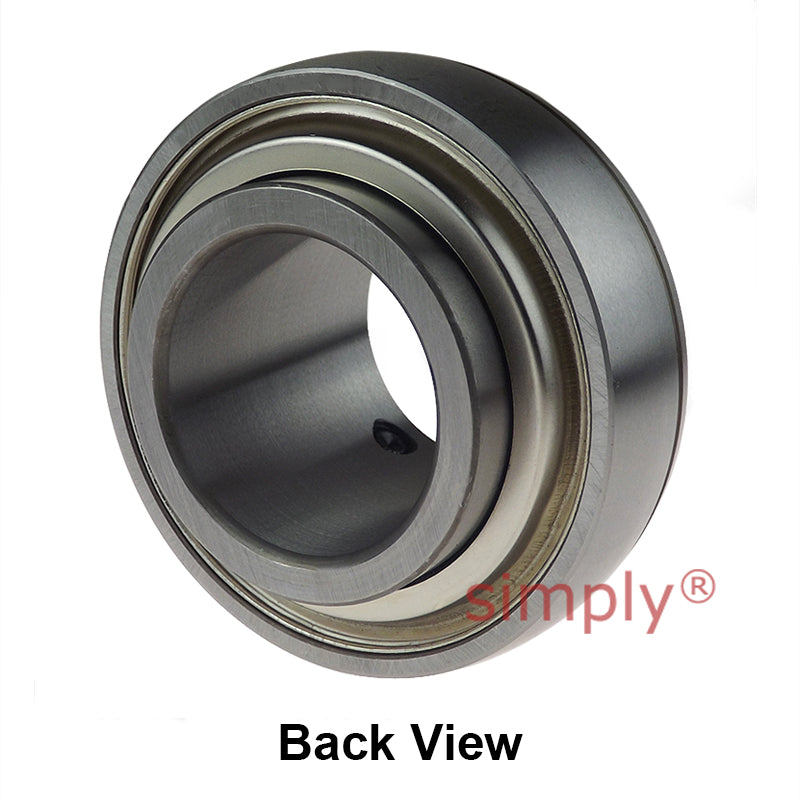

Challenge UC208-24 Imperial Insert with Grub Screws with 1-1/2 inch Bore 80mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC208-24 Imperial Insert with Grub Screws with 1-1/2 inch Bore 80mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
Rs. 3,182.55
Regular price
Sale price
Rs. 3,182.55
Taxes included.
Equivalent to: UC.208-24
In stock
Price Break
10+
Rs. 2,832.47
19+
Rs. 2,673.34
29+
Rs. 2,641.52
39+
Rs. 2,609.69
49+
Rs. 2,577.87
74+
Rs. 2,546.04
99+
Rs. 2,386.91
199+
Rs. 2,355.09
249+
Rs. 2,323.26
499+
Rs. 2,291.44
999+
Rs. 2,227.79
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UC.208-24
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- UC
Technical
Technical
| Shaft Diameter d | 1-1/2 inch |
|---|---|
| Outside Diameter D | 80mm |
| Overall Width Bi | 49.2mm |
| Inner Race Width Be | 21mm |
| Back of Bearing to Centre Line n | 19mm |
| Front of Bearing to Centre Line m | 30.2mm |
| Dimension G | 8mm |
| Grub Screws x 2 | 5/16 - 24UNF inch |
| Load Rating (Dynamic) | 2560kg |
| Load Rating (Static) | 1810kg |
| Max Speed | 2200 rev/min |
| Grease Nipple Thread Size | M6 |
| Working Temperature | -30°C to +120°C |
