SKU: UC.207-23

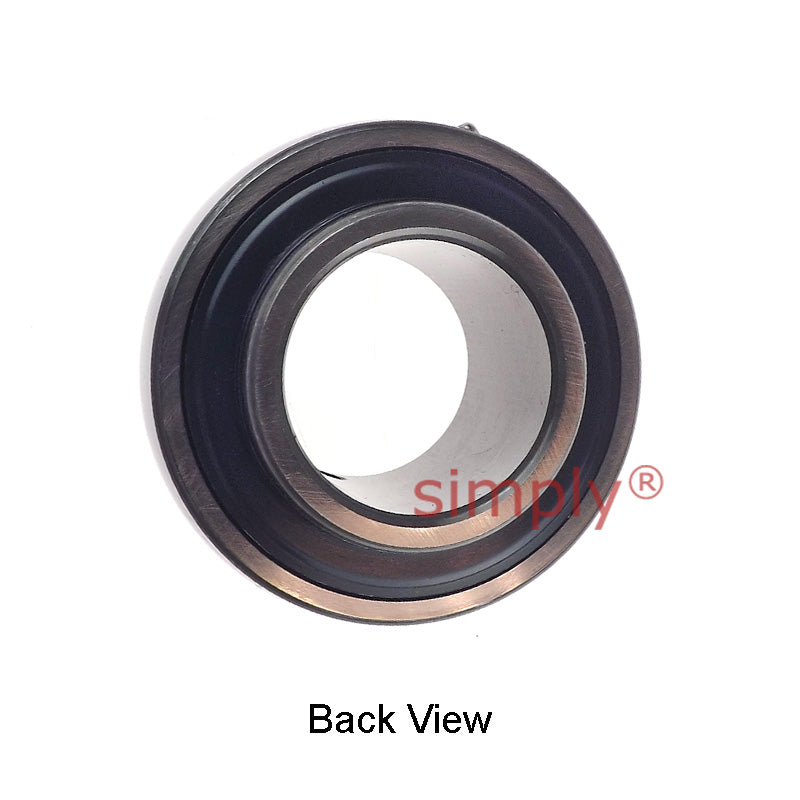

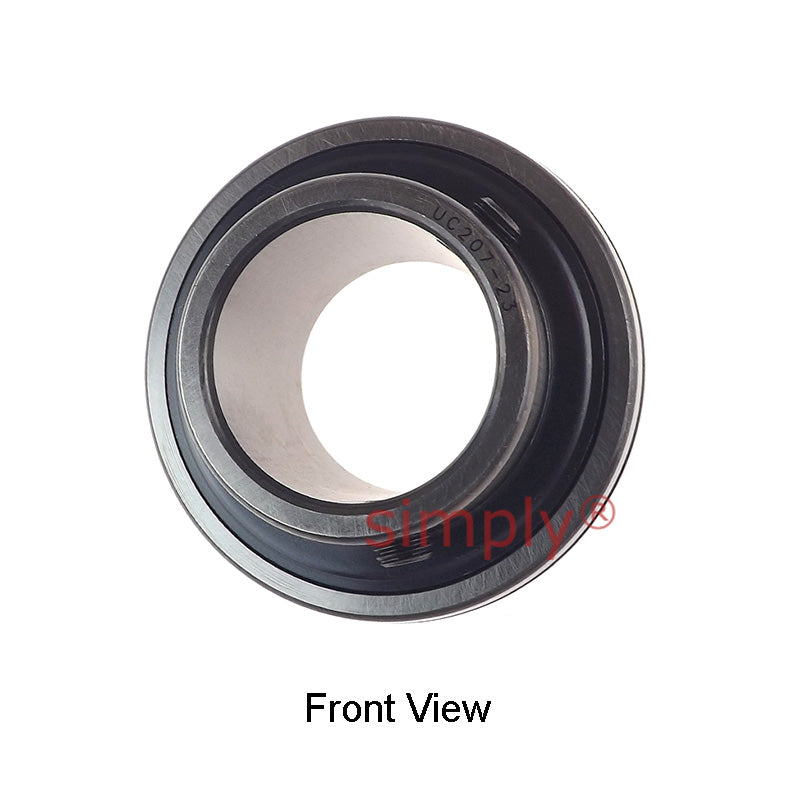

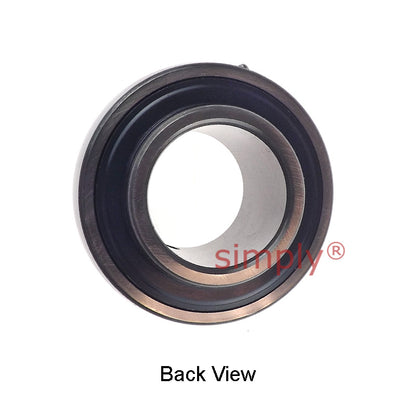

UC207-23 Imperial Bearing Insert with 1-7/16 inch Bore 72mm Outside Dia
UC207-23 Imperial Bearing Insert with 1-7/16 inch Bore 72mm Outside Dia
Regular price
Rs. 1,300.67
Regular price
Sale price
Rs. 1,300.67
Taxes included.
Equivalent to: 1035-1-7/16G
In stock
Price Break
10+
Rs. 1,157.60
19+
Rs. 1,092.56
29+
Rs. 1,079.56
39+
Rs. 1,066.55
49+
Rs. 1,053.54
74+
Rs. 1,040.54
99+
Rs. 975.50
199+
Rs. 962.50
249+
Rs. 949.49
499+
Rs. 936.48
999+
Rs. 910.47
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1035-1-7/16G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Outside Diameter:
- 72mm
- Style:
- UC
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 20mm |
| n | 17.5mm |
| m | 25.4mm |
| G | 6.5mm |
| Grub screw | 5/16"-24 UNF |
| Weight | 0.45 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
