SKU: UC.207-22

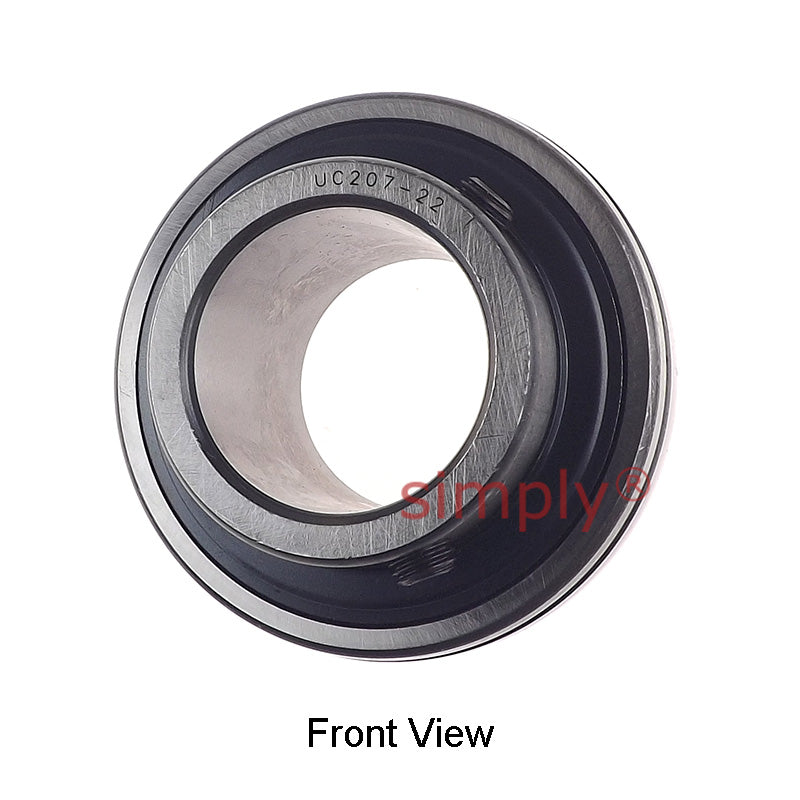

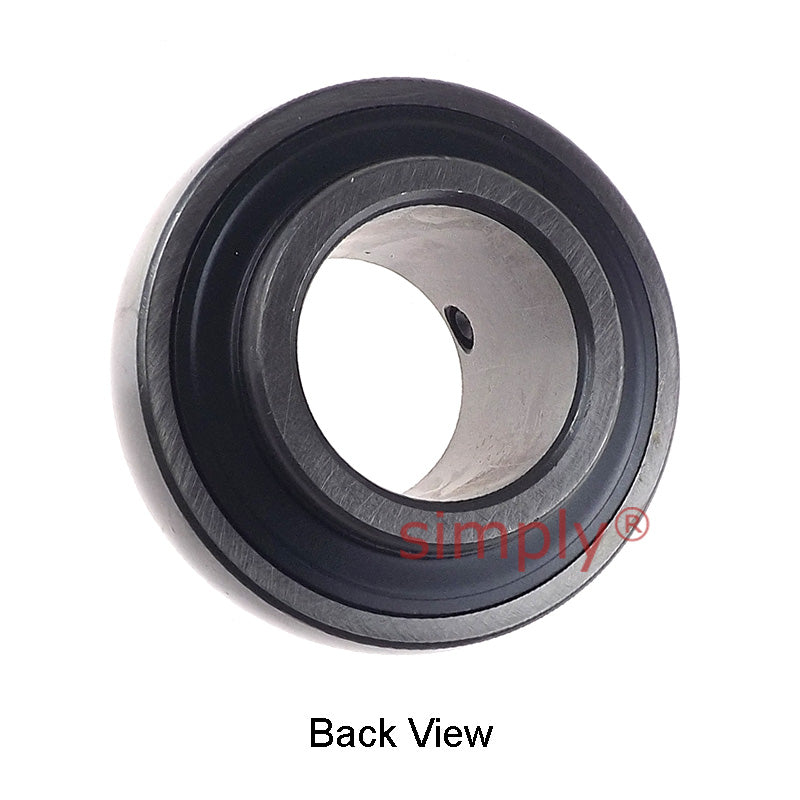

UC207-22 Imperial Bearing Insert with 1-3/8 inch Bore 72mm Outside Dia
UC207-22 Imperial Bearing Insert with 1-3/8 inch Bore 72mm Outside Dia
Regular price
Rs. 1,310.91
Regular price
Sale price
Rs. 1,310.91
Taxes included.
Equivalent to: 1035-1-3/8G
In stock
Price Break
10+
Rs. 1,166.71
19+
Rs. 1,101.16
29+
Rs. 1,088.06
39+
Rs. 1,074.95
49+
Rs. 1,061.84
74+
Rs. 1,048.73
99+
Rs. 983.18
199+
Rs. 970.07
249+
Rs. 956.96
499+
Rs. 943.86
999+
Rs. 917.64
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1035-1-3/8G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 72mm
- Style:
- UC
Technical
Technical
| d | 1-3/8 inch |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 20mm |
| n | 17.5mm |
| m | 25.4mm |
| G | 6.5mm |
| Grub screw | 5/16"-24 UNF |
| Weight | 0.48 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
