SKU: UC.207-21

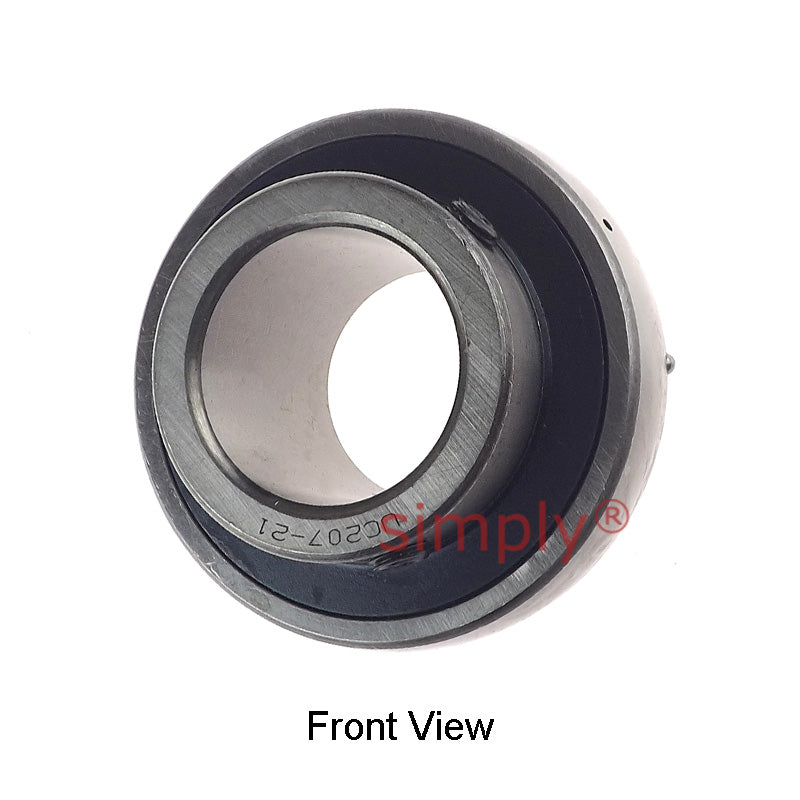

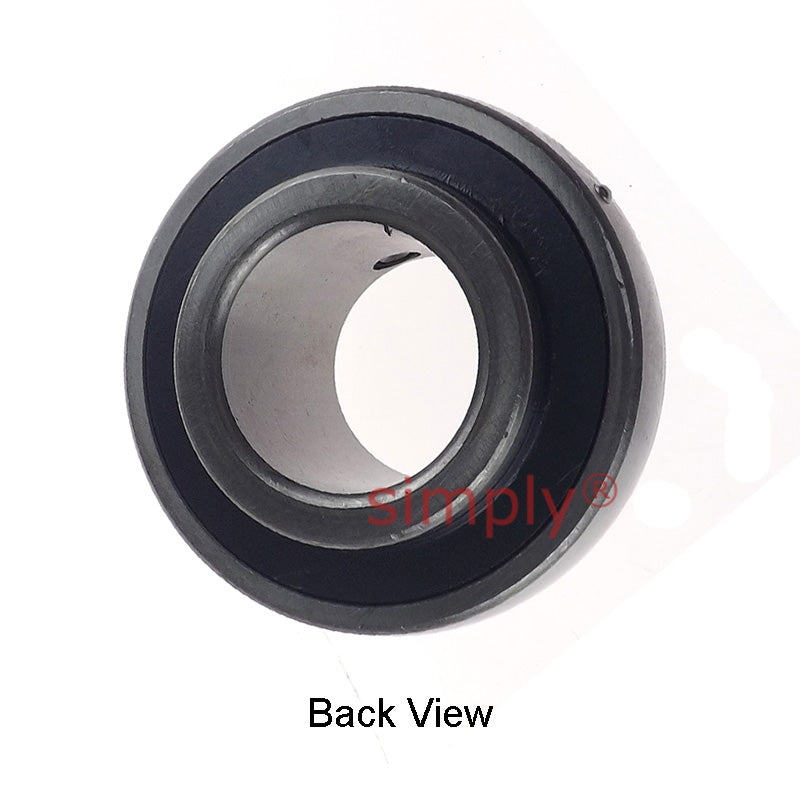

UC207-21 Imperial Bearing Insert with 1-5/16 inch Bore 72mm Outside Dia
UC207-21 Imperial Bearing Insert with 1-5/16 inch Bore 72mm Outside Dia
Regular price
Rs. 1,322.43
Regular price
Sale price
Rs. 1,322.43
Taxes included.
Equivalent to: 1035-1-5/16G
In stock
Price Break
10+
Rs. 1,176.96
19+
Rs. 1,110.84
29+
Rs. 1,097.62
39+
Rs. 1,084.39
49+
Rs. 1,071.17
74+
Rs. 1,057.94
99+
Rs. 991.82
199+
Rs. 978.60
249+
Rs. 965.37
499+
Rs. 952.15
999+
Rs. 925.70
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1035-1-5/16G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 33.33mm = 1.312 (1-5/16) inch
- Outside Diameter:
- 72mm
- Style:
- UC
Technical
Technical
| d | 1-5/16 inch |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 20mm |
| n | 17.5mm |
| m | 25.4mm |
| G | 6.5mm |
| Grub screw | 5/16"-24 UNF |
| Weight | 0.51 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
