SKU: UC.207

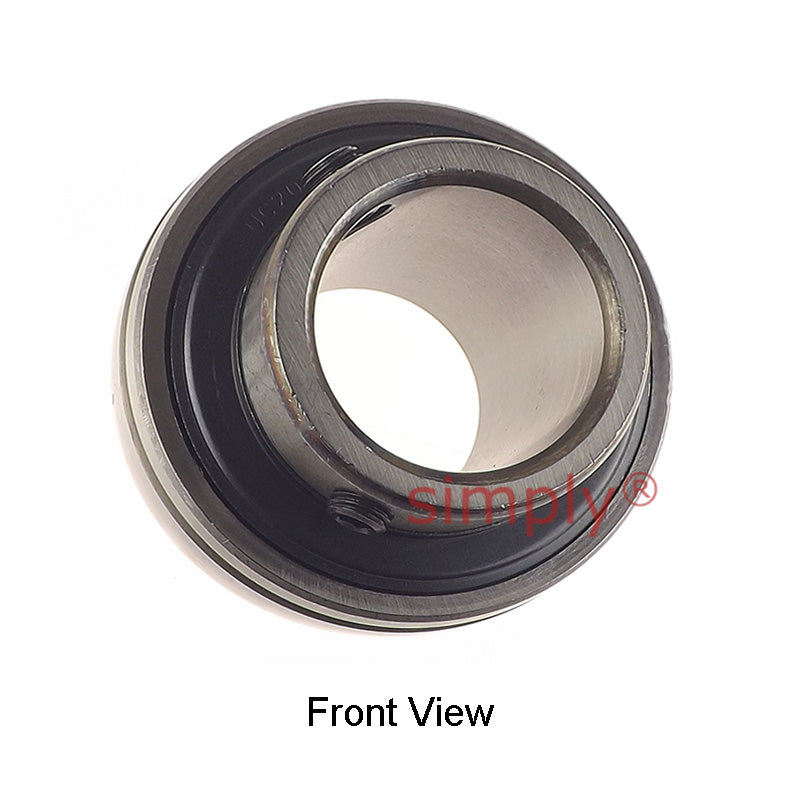

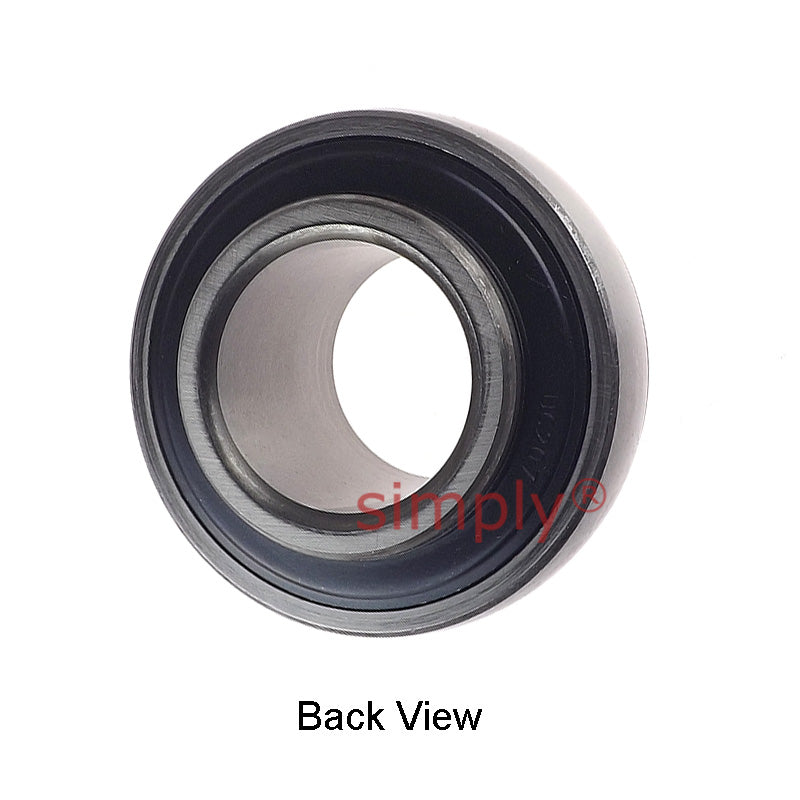

UC207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
UC207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
Regular price
Rs. 1,185.45
Regular price
Sale price
Rs. 1,185.45
Taxes included.
Equivalent to: 1035-35G
In stock
Price Break
10+
Rs. 1,055.05
19+
Rs. 995.78
29+
Rs. 983.92
39+
Rs. 972.07
49+
Rs. 960.21
74+
Rs. 948.36
99+
Rs. 889.09
199+
Rs. 877.23
249+
Rs. 865.38
499+
Rs. 853.52
999+
Rs. 829.82
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1035-35G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Style:
- UC
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 20mm |
| n | 17.5mm |
| m | 25.4mm |
| G | 6.5mm |
| Grub screw | M8x1.0 |
| Weight | 0.48 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
