SKU: UC.206-20.TS.CHAL

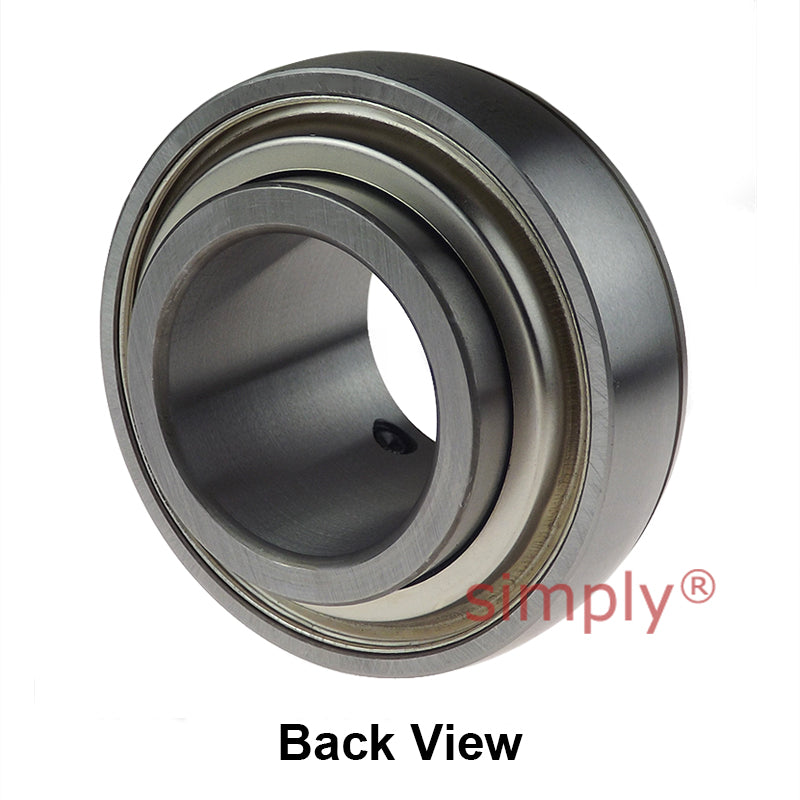

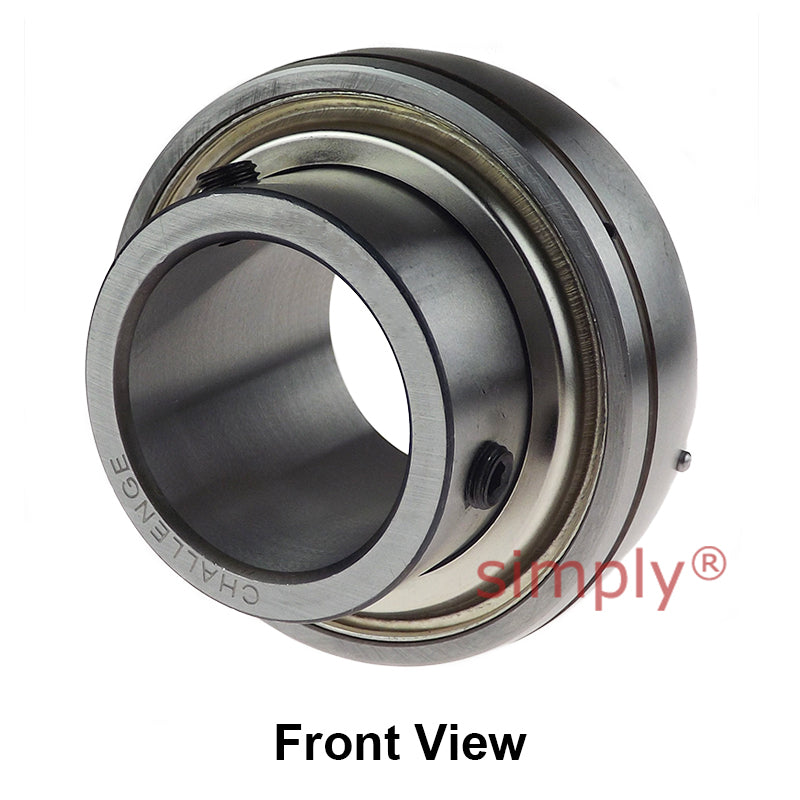

Challenge UC206-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 62mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC206-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 62mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
Rs. 2,144.31
Regular price
Sale price
Rs. 2,144.31
Taxes included.
Equivalent to: UC.206-20
In stock
Price Break
10+
Rs. 1,908.44
19+
Rs. 1,801.22
29+
Rs. 1,779.78
39+
Rs. 1,758.33
49+
Rs. 1,736.89
74+
Rs. 1,715.45
99+
Rs. 1,608.23
199+
Rs. 1,586.79
249+
Rs. 1,565.35
499+
Rs. 1,543.90
999+
Rs. 1,501.02
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UC.206-20
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UC
Technical
Technical
| Shaft Diameter d | 1-1/4 inch |
|---|---|
| Outside Diameter D | 62mm |
| Overall Width Bi | 38.1mm |
| Inner Race Width Be | 19mm |
| Back of Bearing to Centre Line n | 15.9mm |
| Front of Bearing to Centre Line m | 22.2mm |
| Dimension G | 5mm |
| Grub Screws x 2 | 1/4 - 28UNF inch |
| Load Rating (Dynamic) | 1520kg |
| Load Rating (Static) | 1020kg |
| Max Speed | 2800 rev/min |
| Grease Nipple Thread Size | M6 |
| Working Temperature | -30°C to +120°C |
