SKU: UC.202

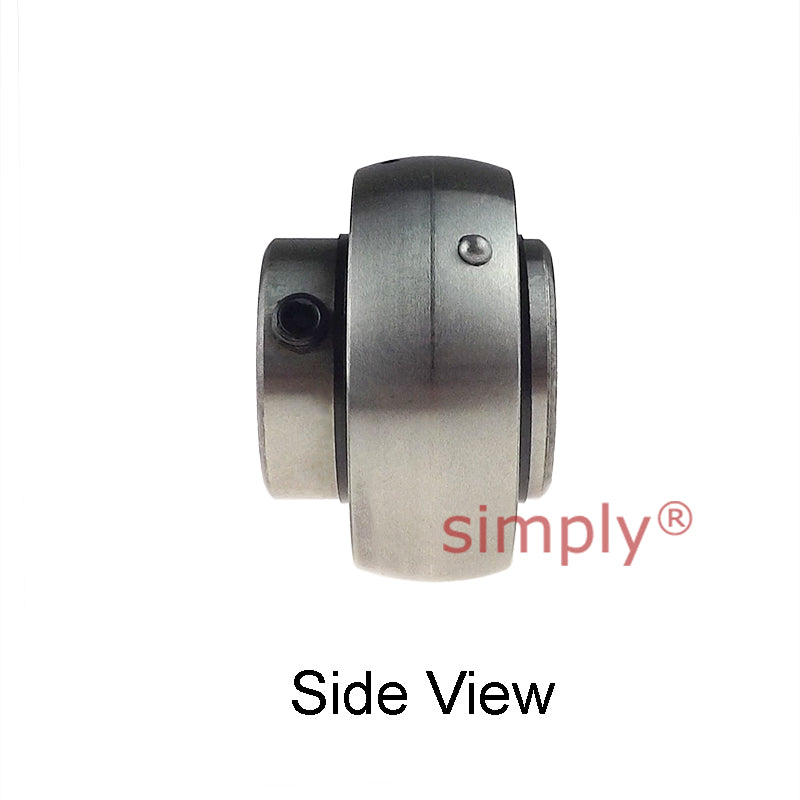

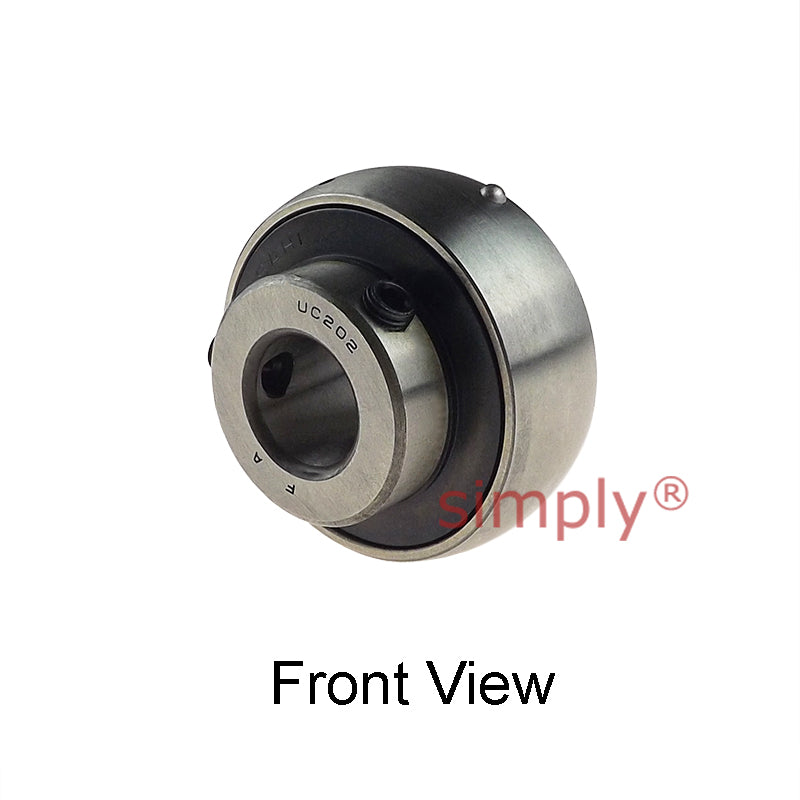

UC202 Metric Bearing Insert with 15mm Bore 47mm Outside Dia
UC202 Metric Bearing Insert with 15mm Bore 47mm Outside Dia
Regular price
Rs. 1,013.91
Regular price
Sale price
Rs. 1,013.91
Taxes included.
In stock
Price Break
10+
Rs. 902.38
19+
Rs. 851.68
29+
Rs. 841.55
39+
Rs. 831.41
49+
Rs. 821.27
74+
Rs. 811.13
99+
Rs. 760.43
199+
Rs. 750.29
249+
Rs. 740.15
499+
Rs. 730.02
999+
Rs. 709.74
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 47mm
- Style:
- UC
Technical
Technical
| d | 15mm |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| n | 12.7mm |
| m | 18.3mm |
| G | 4.8mm |
| Grub screw | M6x1 |
| Weight | 0.21 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
