SKU: UC.201-8

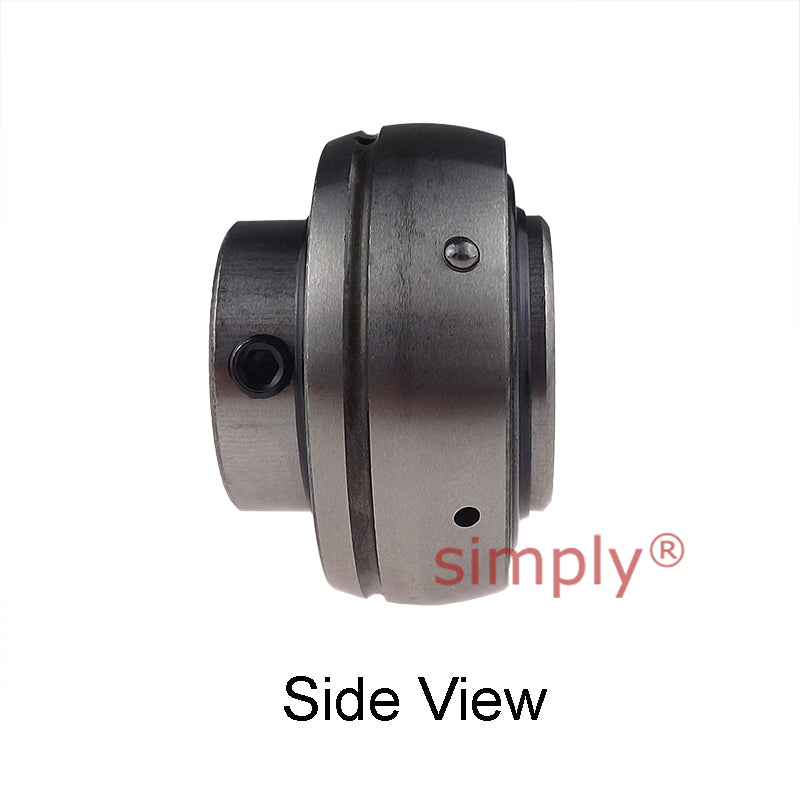

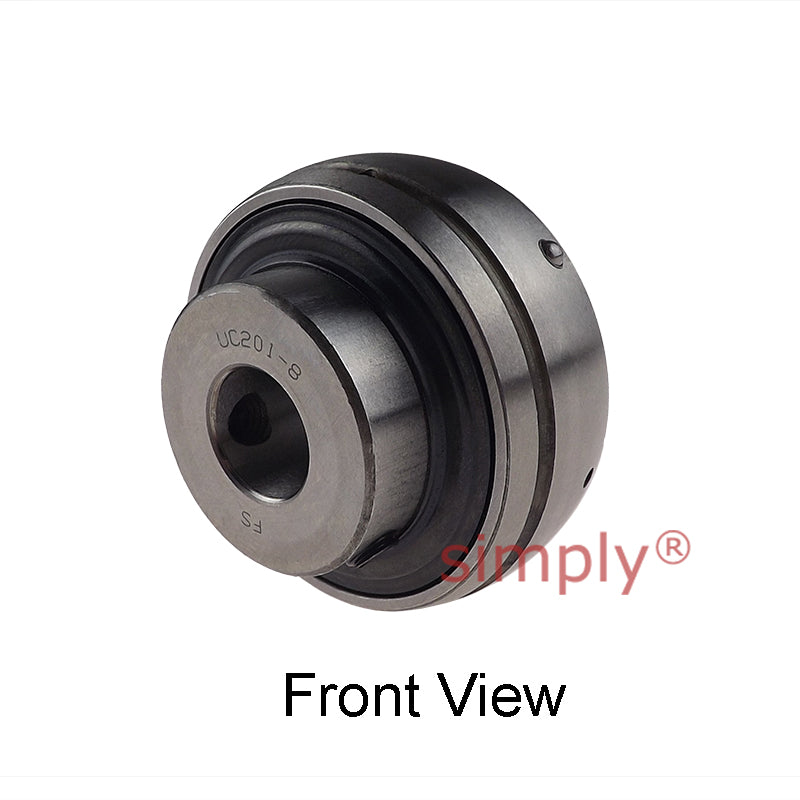

UC201-8 Imperial Bearing Insert with 1/2 inch Bore 47mm Outside Dia
UC201-8 Imperial Bearing Insert with 1/2 inch Bore 47mm Outside Dia
Regular price
Rs. 854.81
ex VAT
Regular price
Sale price
Rs. 854.81
ex VAT
In stock
Price Break
10+
Rs. 760.78
19+
Rs. 718.04
29+
Rs. 709.49
39+
Rs. 700.94
49+
Rs. 692.40
74+
Rs. 683.85
99+
Rs. 641.11
199+
Rs. 632.56
249+
Rs. 624.01
499+
Rs. 615.46
999+
Rs. 598.37
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Outside Diameter:
- 47mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 1/2 inch |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| n | 12.7mm |
| m | 18.3mm |
| G | 4.8mm |
| Grub screw | 1/4"-28 UNF |
| Weight | 0.21 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
