• U007 Metric Eccentric Collar Type Bearing Insert with 35mm Bore 62mm Outside Dia
1 1

SKU: U007

U007 Metric Eccentric Collar Type Bearing Insert with 35mm Bore 62mm Outside Dia

U007 Metric Eccentric Collar Type Bearing Insert with 35mm Bore 62mm Outside Dia
Rs. 1,130.41
Rs. 1,130.41
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 1,006.06
19+ Rs. 949.54
29+ Rs. 938.24
39+ Rs. 926.94
49+ Rs. 915.63
74+ Rs. 904.33
99+ Rs. 847.81
199+ Rs. 836.50
249+ Rs. 825.20
499+ Rs. 813.90
999+ Rs. 791.29
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

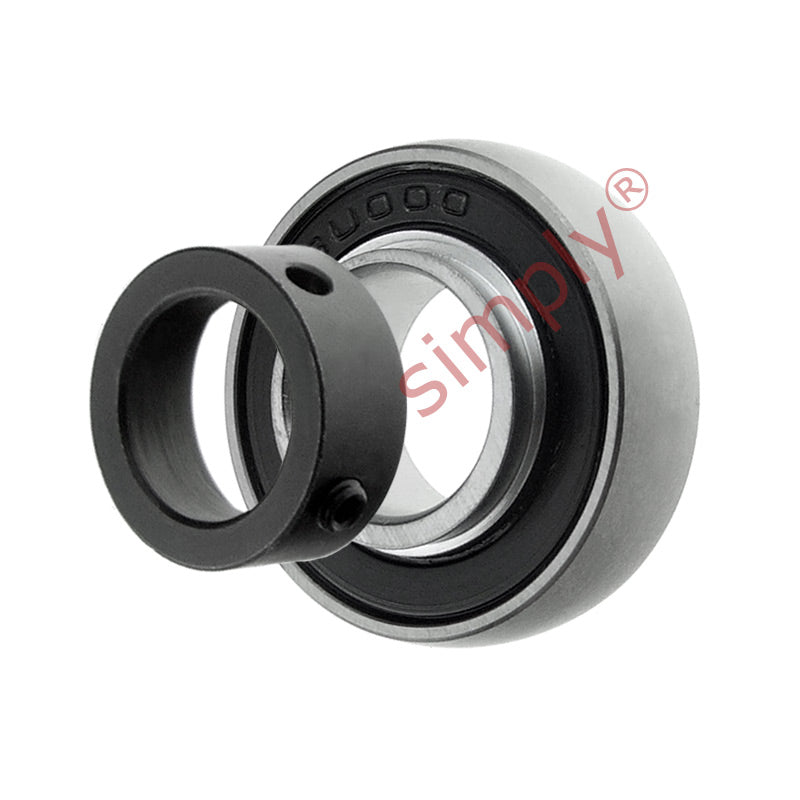

Miniature SA or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing.
Benefits: Cost effective bearing insert, locking collar and grub screw fixing, secure shaft fixing

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
35mm
Outside Diameter:
62mm
Style:
U
Technical
d 35mm
D 62mm
L 29.5mm
Bi 20mm
Be 14mm
r 1.5mm
n 7mm
B3 13.5mm
d1 48mm
A 5mm
ds M6x0.75
Dynamic load 15920 N ~ 1623.388 kgf
Static load 10290 N ~ 1049.288 kgf
Weight 0.232 kg
