• U001 Metric Eccentric Collar Type Bearing Insert with 12mm Bore 28mm Outside Dia
1 1

SKU: U001

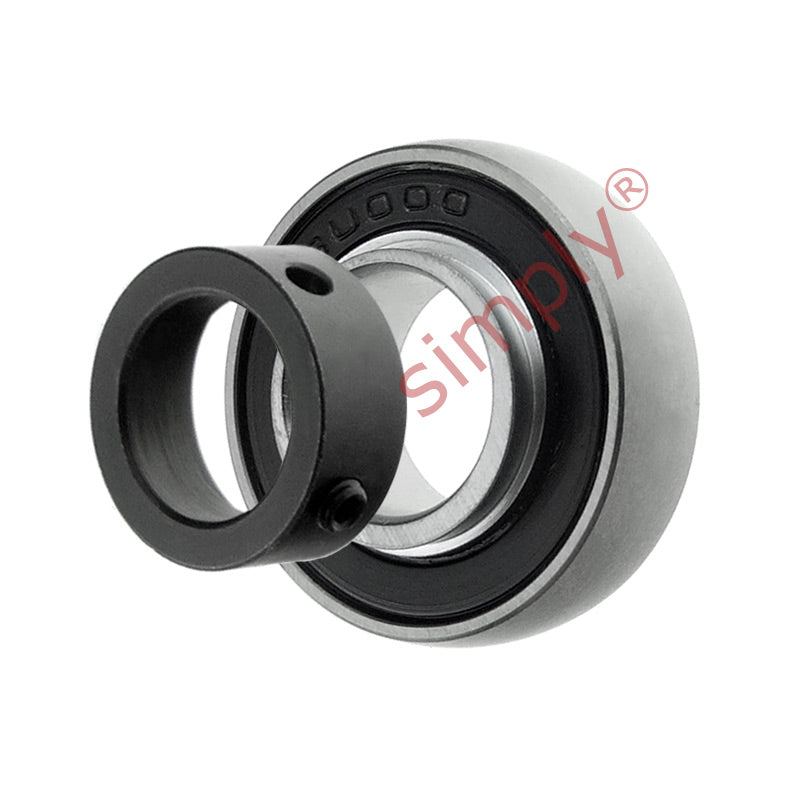

U001 Metric Eccentric Collar Type Bearing Insert with 12mm Bore 28mm Outside Dia

U001 Metric Eccentric Collar Type Bearing Insert with 12mm Bore 28mm Outside Dia
Rs. 1,030.55
Rs. 1,030.55
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 917.19
19+ Rs. 865.66
29+ Rs. 855.36
39+ Rs. 845.05
49+ Rs. 834.75
74+ Rs. 824.44
99+ Rs. 772.91
199+ Rs. 762.61
249+ Rs. 752.30
499+ Rs. 742.00
999+ Rs. 721.39
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Miniature SA or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing.
Benefits: Cost effective bearing insert, locking collar and grub screw fixing, secure shaft fixing

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
12mm
Outside Diameter:
28mm
Style:
U
Technical
d 12mm
D 28mm
L 17.5mm
Bi 11mm
Be 8mm
r 0.5mm
n 4mm
B3 8.5mm
d1 19mm
A 3.5mm
ds M4X0.7
Dynamic load 5096 N ~ 519.647 kgf
Static load 2401 N ~ 244.834 kgf
Weight 0.04 kg
