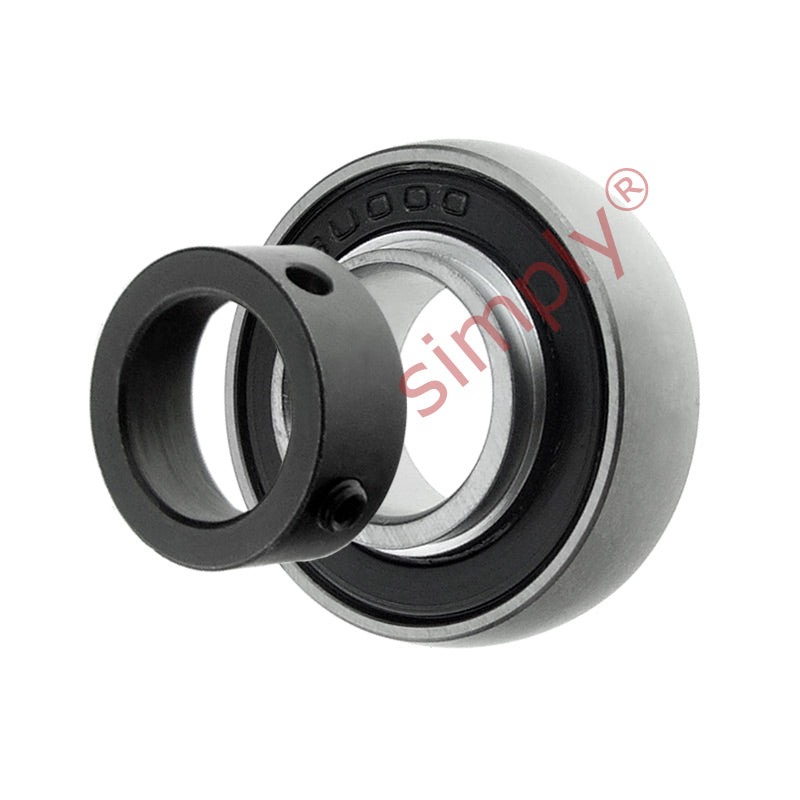

• U000 Metric Eccentric Collar Type Bearing Insert with 10mm Bore 26mm Outside Dia
1 1

SKU: U000

U000 Metric Eccentric Collar Type Bearing Insert with 10mm Bore 26mm Outside Dia

U000 Metric Eccentric Collar Type Bearing Insert with 10mm Bore 26mm Outside Dia
Rs. 1,129.13
Rs. 1,129.13
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 1,004.93
19+ Rs. 948.47
29+ Rs. 937.18
39+ Rs. 925.89
49+ Rs. 914.60
74+ Rs. 903.30
99+ Rs. 846.85
199+ Rs. 835.56
249+ Rs. 824.26
499+ Rs. 812.97
999+ Rs. 790.39
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Miniature SA or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing.
Benefits: Cost effective bearing insert, locking collar and grub screw fixing, secure shaft fixing

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
10mm
Outside Diameter:
26mm
Style:
U
Technical
d 10mm
D 26mm
L 17.5mm
Bi 11mm
Be 8mm
r 0.5mm
n 4mm
B3 8.5mm
d1 17mm
A 3.5mm
ds M4X0.7
Dynamic load 4606 N ~ 469.681 kgf
Static load 1906 N ~ 194.358 kgf
Weight 0.03 kg
