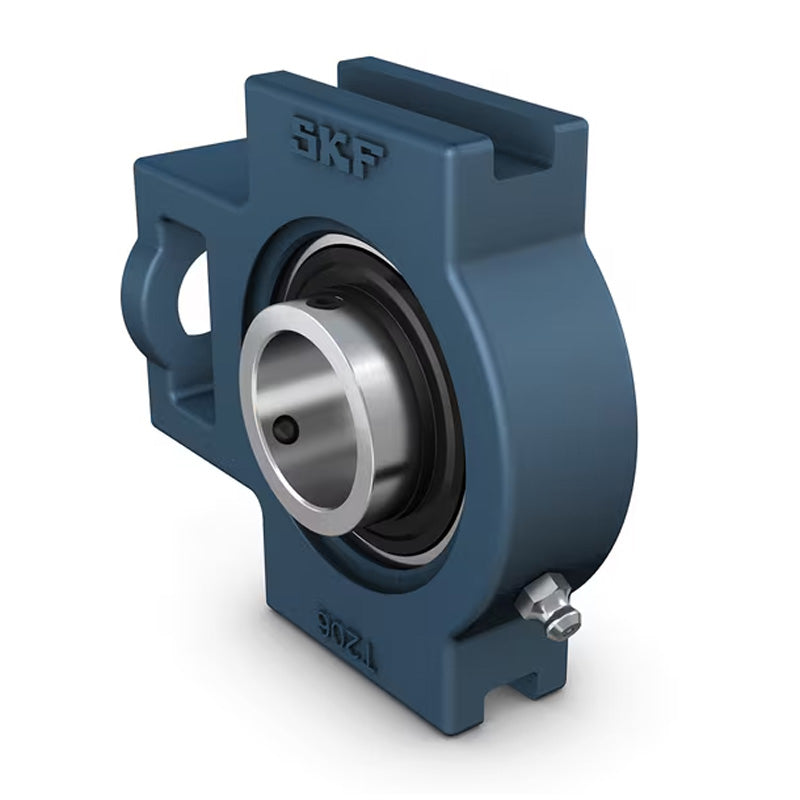

SKF TU35FM Eccentric Locking Collar Take Up Unit 35mm Bore
SKF TU35FM Eccentric Locking Collar Take Up Unit 35mm Bore
Regular price
Rs. 10,750.57
ex VAT
Regular price
Sale price
Rs. 10,750.57
ex VAT
In stock
Price Break
10+
Rs. 9,568.01
19+
Rs. 9,030.48
29+
Rs. 8,922.97
39+
Rs. 8,815.47
49+
Rs. 8,707.96
74+
Rs. 8,600.46
99+
Rs. 8,062.93
199+
Rs. 7,955.42
249+
Rs. 7,847.92
499+
Rs. 7,740.41
999+
Rs. 7,525.40
Couldn't load pickup availability
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and an Eccentric Locking Collar: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- TU
Technical
Technical
| d | 35mm |
|---|---|
| A | 37mm |
| A1 | 13.5mm |
| A2 | 30mm |
| B1 | 38.9mm |
| D1 | 22mm |
| H | 103mm |
| H1 | 89mm |
| H2 | 64mm |
| L | 129mm |
| L1 | 78mm |
| L2 | 12mm |
| L3 | 64mm |
| N | 38mm |
| N1 | 17mm |
| s1 | 29.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| A5 | 22mm |
| Weight | 1.45 kg |
| Compatible end cover | ECY207 |
