SKU: TU3/4TF-SKF

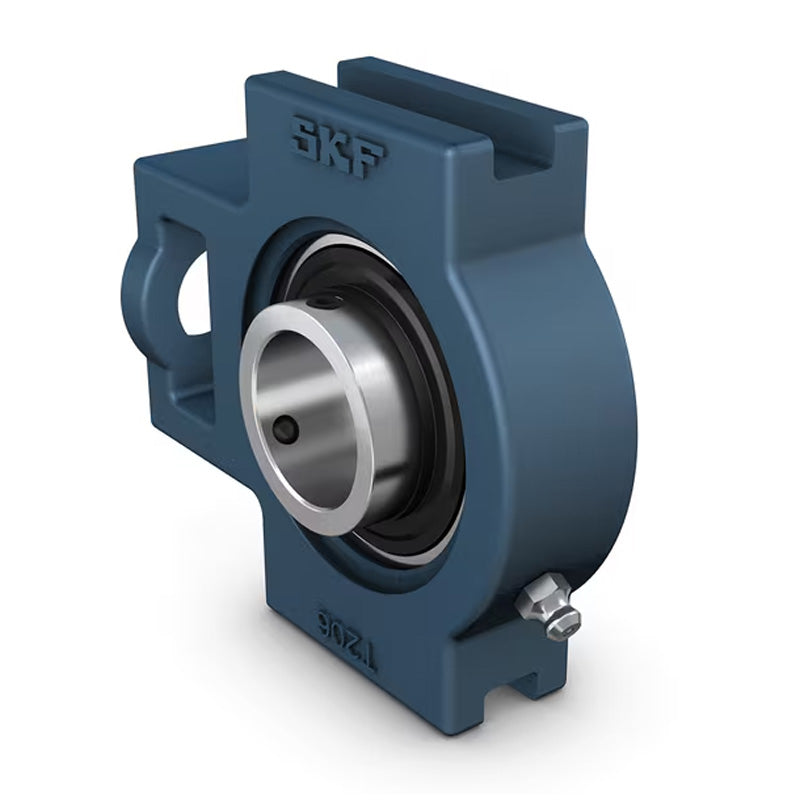

SKF TU3/4TF Grub Screw Type Take Up Unit 3/4 inch Bore
SKF TU3/4TF Grub Screw Type Take Up Unit 3/4 inch Bore
Regular price
Rs. 17,515.53
Regular price
Sale price
Rs. 17,515.53
Taxes included.
In stock
Price Break
10+
Rs. 15,588.82
19+
Rs. 14,713.05
29+
Rs. 14,537.89
39+
Rs. 14,362.73
49+
Rs. 14,187.58
74+
Rs. 14,012.42
99+
Rs. 13,136.65
199+
Rs. 12,961.49
249+
Rs. 12,786.34
499+
Rs. 12,611.18
999+
Rs. 12,260.87
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- TU
Technical
Technical
| d | 3/4 inch |
|---|---|
| A | 34mm |
| A1 | 13.5mm |
| A2 | 25mm |
| B | 31mm |
| D1 | 19mm |
| H | 92mm |
| H1 | 76mm |
| H2 | 54mm |
| L | 97mm |
| L1 | 62mm |
| L2 | 10mm |
| L3 | 54mm |
| N | 32mm |
| N1 | 16mm |
| s1 | 18.3mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Limiting speed | 8500 rpm |
| Weight | 0.73 kg |
