SKU: TU25TF-SKF

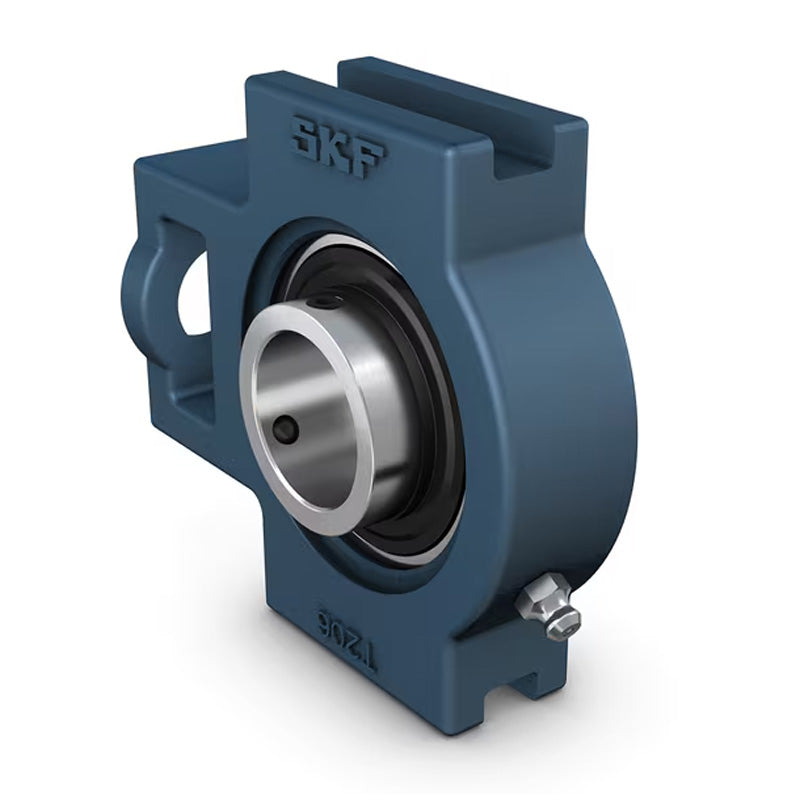

SKF TU25TF Grub Screw Type Take Up Unit 25mm Bore
SKF TU25TF Grub Screw Type Take Up Unit 25mm Bore
Regular price
Rs. 6,311.33
Regular price
Sale price
Rs. 6,311.33
Taxes included.
In stock
Price Break
10+
Rs. 5,617.08
19+
Rs. 5,301.52
29+
Rs. 5,238.40
39+
Rs. 5,175.29
49+
Rs. 5,112.18
74+
Rs. 5,049.06
99+
Rs. 4,733.50
199+
Rs. 4,670.38
249+
Rs. 4,607.27
499+
Rs. 4,544.16
999+
Rs. 4,417.93
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Style:
- TU
Technical
Technical
| d | 25mm |
|---|---|
| A | 34mm |
| A1 | 13.5mm |
| A2 | 25mm |
| B | 34.1mm |
| D1 | 19mm |
| H | 91mm |
| H1 | 76mm |
| H2 | 53mm |
| L | 100mm |
| L1 | 64mm |
| L2 | 10mm |
| L3 | 52mm |
| N | 33mm |
| N1 | 16mm |
| s1 | 19.8mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 7000 rpm |
| A5 | 18mm |
| Weight | 0.77 kg |
| Compatible end cover | ECY205 |
