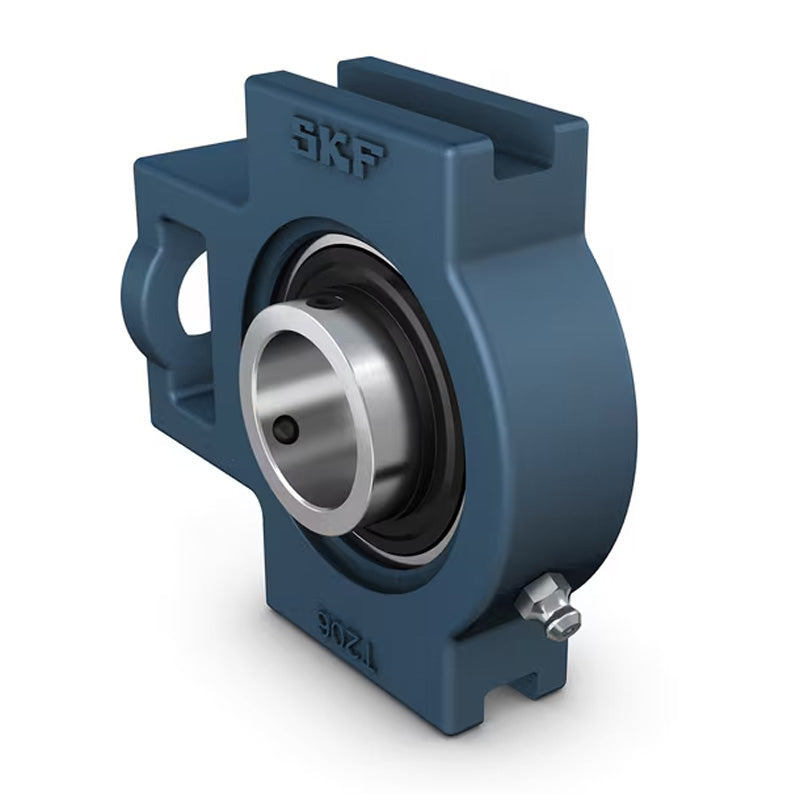

SKF TU1TF Grub Screw Type Take Up Unit 1 inch Bore
SKF TU1TF Grub Screw Type Take Up Unit 1 inch Bore
Regular price
Rs. 7,368.01
ex VAT
Regular price
Sale price
Rs. 7,368.01
ex VAT
In stock
Price Break
10+
Rs. 6,557.53
19+
Rs. 6,189.13
29+
Rs. 6,115.45
39+
Rs. 6,041.77
49+
Rs. 5,968.09
74+
Rs. 5,894.41
99+
Rs. 5,526.01
199+
Rs. 5,452.33
249+
Rs. 5,378.65
499+
Rs. 5,304.97
999+
Rs. 5,157.61
Couldn't load pickup availability
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- TU
Technical
Technical
| d | 1 inch |
|---|---|
| A | 34mm |
| A1 | 13.5mm |
| A2 | 25mm |
| B | 34.1mm |
| D1 | 19mm |
| H | 91mm |
| H1 | 76mm |
| H2 | 53mm |
| L | 100mm |
| L1 | 64mm |
| L2 | 10mm |
| L3 | 52mm |
| N | 33mm |
| N1 | 16mm |
| s1 | 19.8mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 7000 rpm |
| A5 | 18mm |
| Weight | 0.77 kg |
