SKU: TU1.1/8TF-SKF

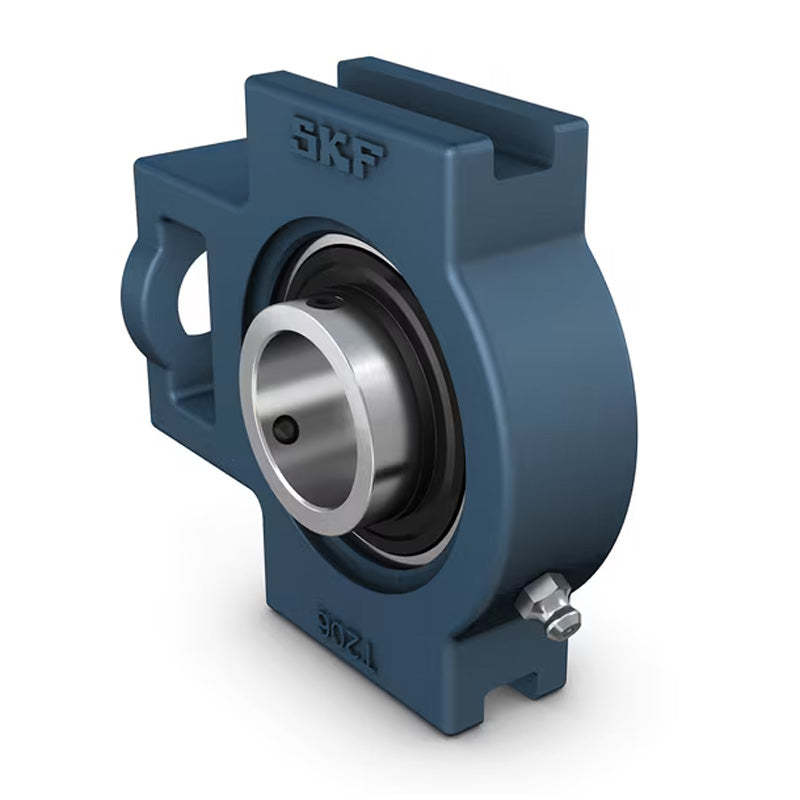

SKF TU1-1/8TF Grub Screw Type Take Up Unit 1-1/8 inch Bore
SKF TU1-1/8TF Grub Screw Type Take Up Unit 1-1/8 inch Bore
Regular price
Rs. 9,362.01
ex VAT
Regular price
Sale price
Rs. 9,362.01
ex VAT
In stock
Price Break
10+
Rs. 8,332.19
19+
Rs. 7,864.09
29+
Rs. 7,770.47
39+
Rs. 7,676.85
49+
Rs. 7,583.23
74+
Rs. 7,489.61
99+
Rs. 7,021.51
199+
Rs. 6,927.89
249+
Rs. 6,834.27
499+
Rs. 6,740.65
999+
Rs. 6,553.41
Couldn't load pickup availability
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- TU
Technical
Technical
| d | 1-1/8 inch |
|---|---|
| A | 37mm |
| A1 | 13.5mm |
| A2 | 28mm |
| B | 38.1mm |
| D1 | 22mm |
| H | 104mm |
| H1 | 89mm |
| H2 | 56mm |
| L | 114mm |
| L1 | 70mm |
| L2 | 10mm |
| L3 | 57mm |
| N | 37mm |
| N1 | 16mm |
| s1 | 22.2mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 6300 rpm |
| Weight | 1.25 kg |
