SKU: TS-N5/8-SE38-DUN

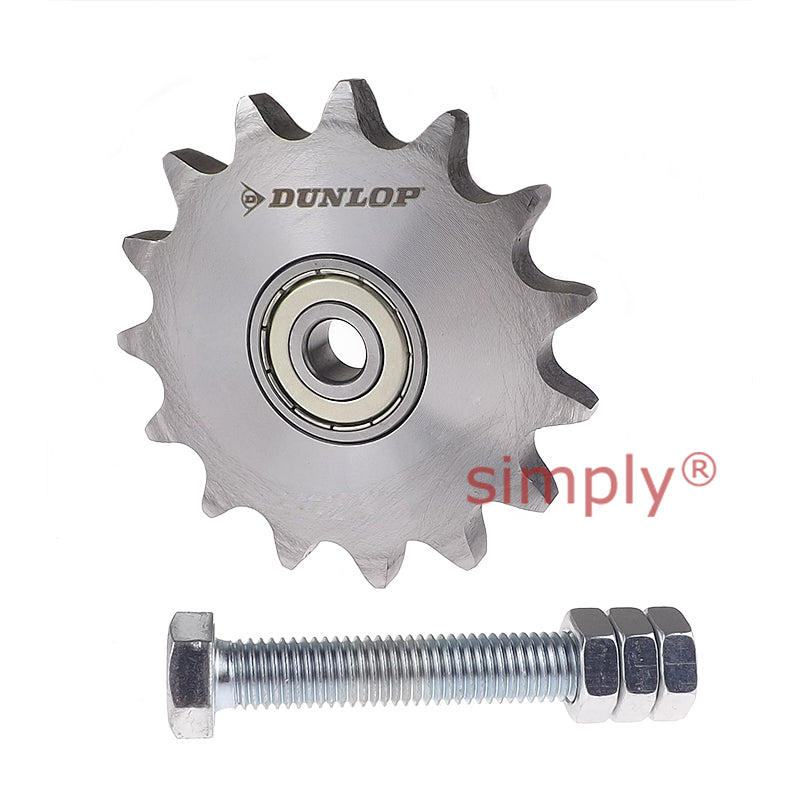

Dunlop 10BX15T N5/8 inch Sprocket for SE38 Tension Arm
Dunlop 10BX15T N5/8 inch Sprocket for SE38 Tension Arm
Regular price
Rs. 1,847.04
ex VAT
Regular price
Sale price
Rs. 1,847.04
ex VAT
In stock
Price Break
10+
Rs. 1,643.87
19+
Rs. 1,551.51
29+
Rs. 1,533.04
39+
Rs. 1,514.57
49+
Rs. 1,496.10
74+
Rs. 1,477.63
99+
Rs. 1,385.28
199+
Rs. 1,366.81
249+
Rs. 1,348.34
499+
Rs. 1,329.87
999+
Rs. 1,292.93
Couldn't load pickup availability
Description
Description
Dunlop Tension Sprocket: The idler sprocket set is designed as a tensioning element for applications in chain drives. The idler sprocket runs on a self-lubricating ball bearing Type 2Z. We have a range of idler sprockets to suit standard roller chain pitch sizes from O6B-1 to 24B-1.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
- Brand / Quality:
- Dunlop - Good Quality
- Thread Size:
- M20
- Number of Teeth:
- 15
- Part No:
- N5/8 inch
Technical
Technical
| Part No. | N5/8 inch |
|---|---|
| No of Teeth | 15 |
| W | M20mm |
| L | 100mm |
| A | 20mm |
| B | 9.1mm |
| C | 15mm |
| D | 76.36mm |
| Torque Hex Nut 0.5d | 172 Nm |
| Adjusting Range Track R | 38mm |
| Size SE | 38 |
| To Fit Roller Chain ANSI | 50 |
| To Fit Roller Chain DIN 8187 | ISO 10 B |
