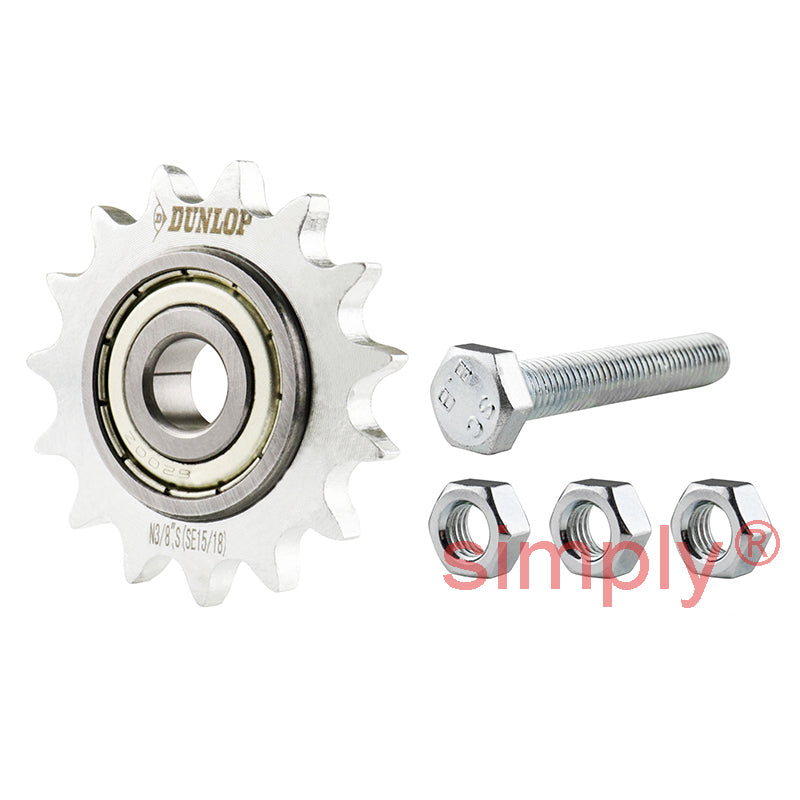

Dunlop 06BX15T N3/8 inch Sprocket for SE15/SE18 Tension Arm
Dunlop 06BX15T N3/8 inch Sprocket for SE15/SE18 Tension Arm
Regular price
Rs. 1,406.93
Regular price
Sale price
Rs. 1,406.93
Taxes included.
In stock
Price Break
10+
Rs. 1,252.17
19+
Rs. 1,181.82
29+
Rs. 1,167.75
39+
Rs. 1,153.68
49+
Rs. 1,139.61
74+
Rs. 1,125.54
99+
Rs. 1,055.20
199+
Rs. 1,041.13
249+
Rs. 1,027.06
499+
Rs. 1,012.99
999+
Rs. 984.85
Description
Description

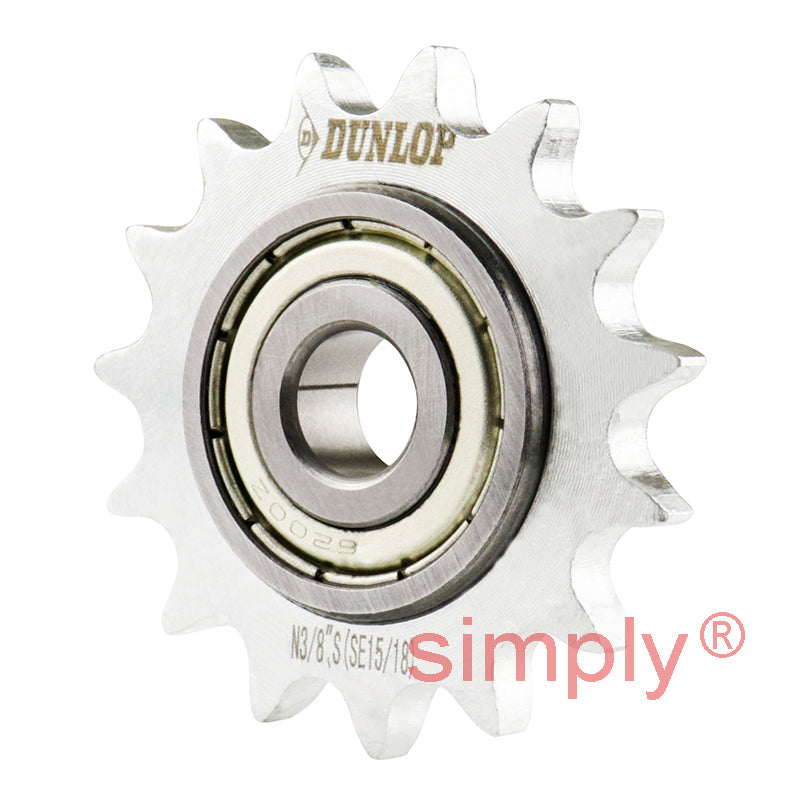

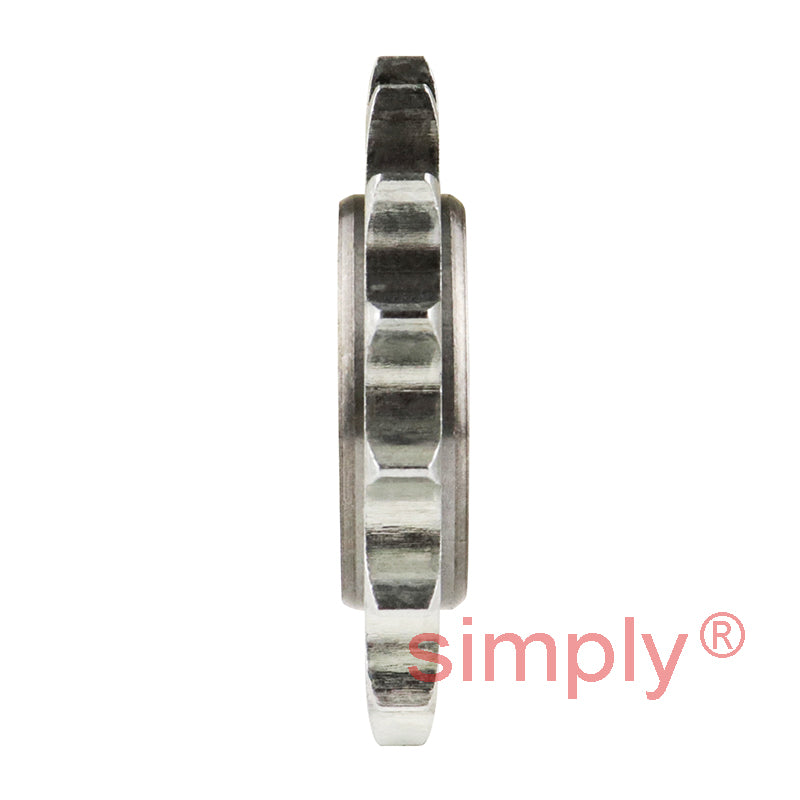

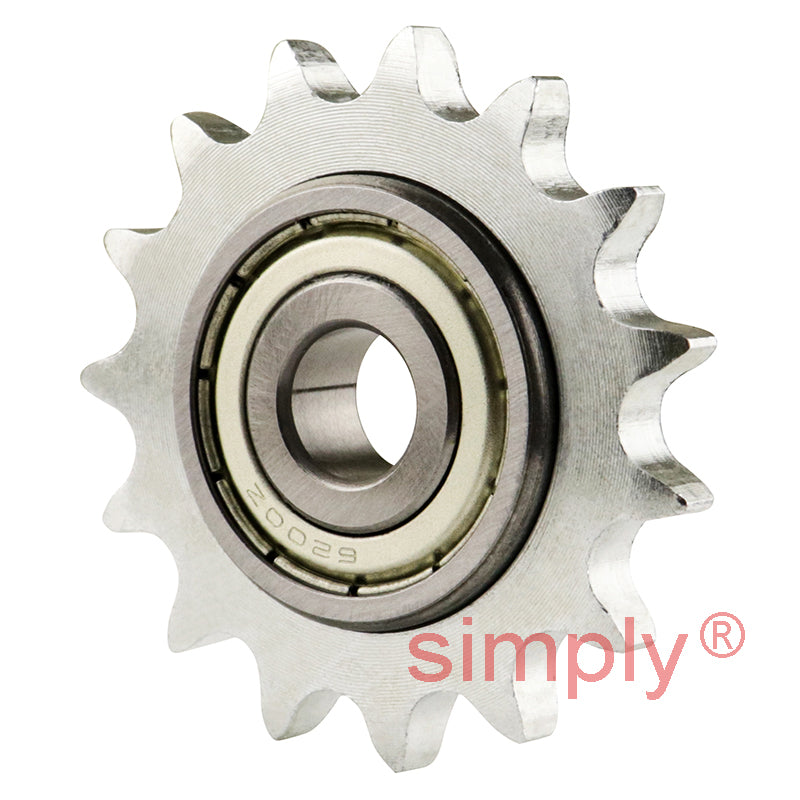

Dunlop Tension Sprocket: The idler sprocket set is designed as a tensioning element for applications in chain drives. The idler sprocket runs on a self-lubricating ball bearing Type 2Z. We have a range of idler sprockets to suit standard roller chain pitch sizes from O6B-1 to 24B-1.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
- Brand / Quality:
- Dunlop - Good Quality
- Thread Size:
- M10
- Number of Teeth:
- 15
- Part No:
- N3/8 inch
Technical
Technical
| Part No. | N3/8 inch |
|---|---|
| No of Teeth | 15 |

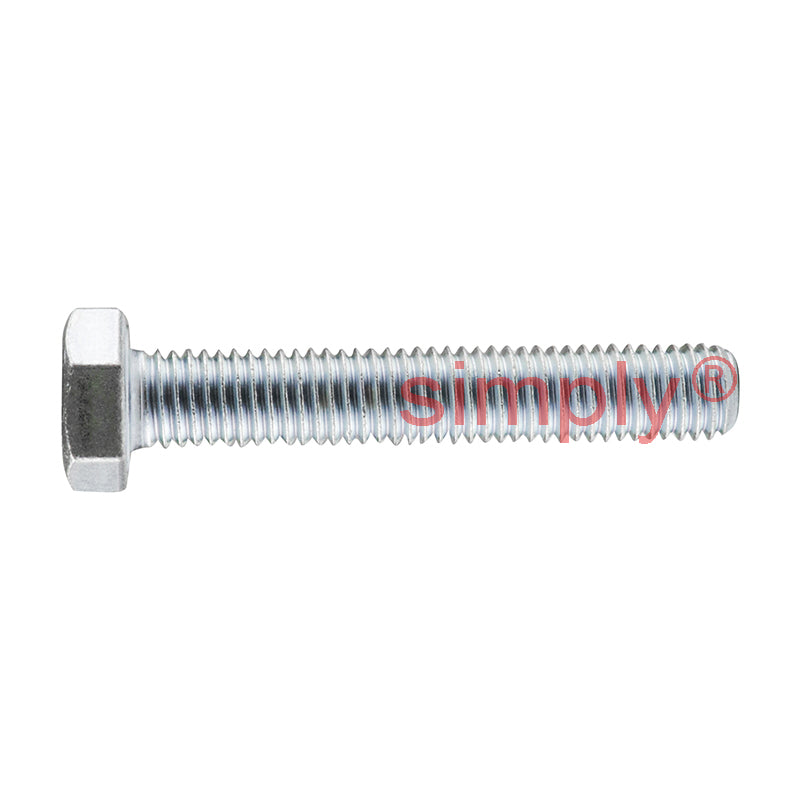

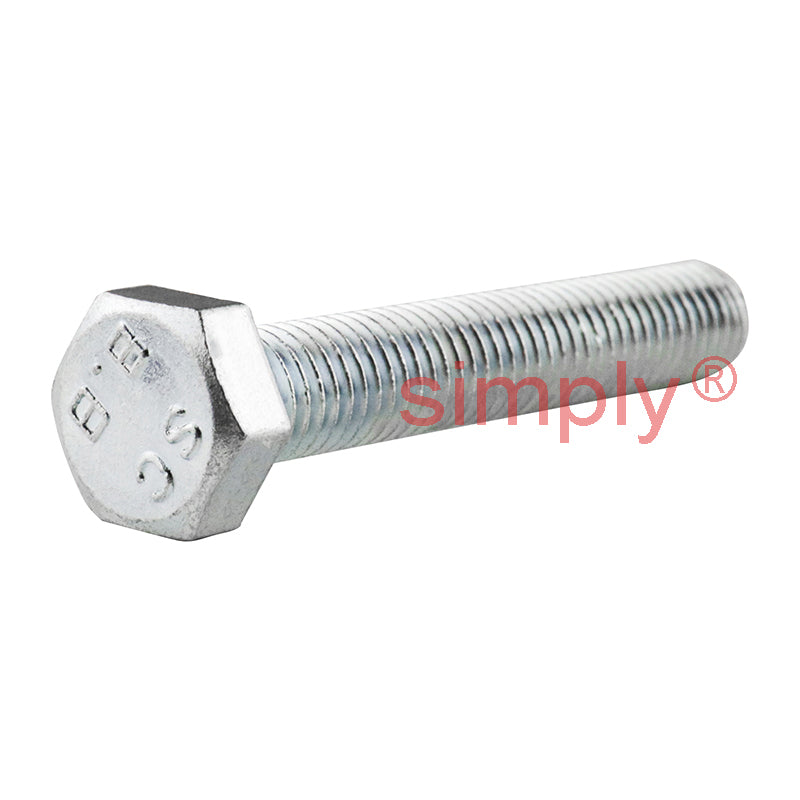

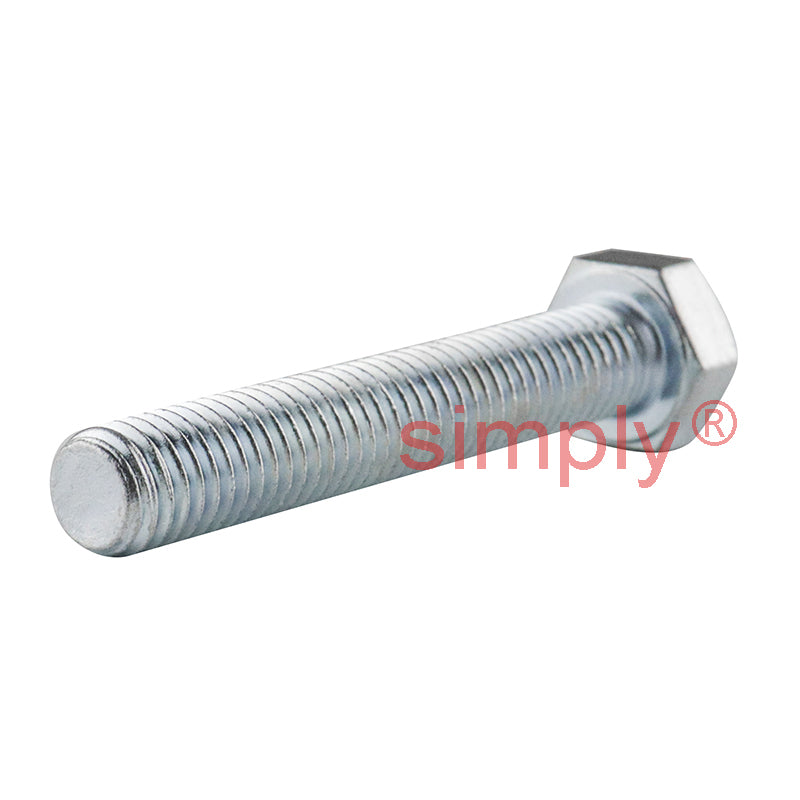

| W | M10mm |
| L | 55mm |
| A | 10mm |
| B | 5.3mm |
| C | 9mm |
| D | 45.81mm |
| Torque Hex Nut 0.5d | 20 Nm |
| Adjusting Range Track R | 22-43/23/43mm |
| Size SE | 15/18 |
| To Fit Roller Chain ANSI | 35 |
| To Fit Roller Chain DIN 8187 | ISO 06 B |
