SKU: TS-N3/4-SE38-DUN

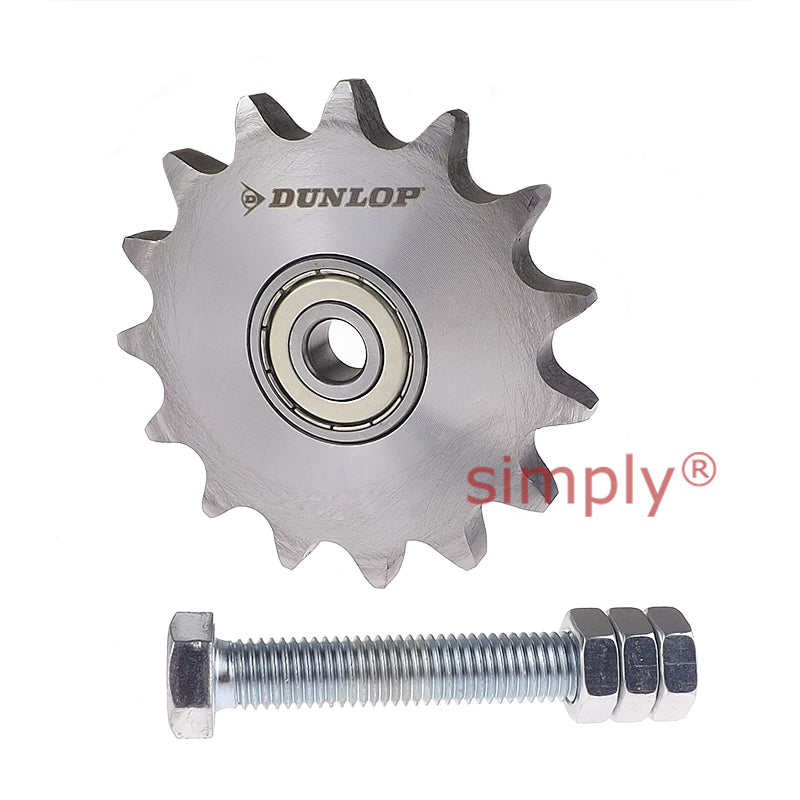

Dunlop 12BX15T N3/4 inch Sprocket for SE38 Tension Arm
Dunlop 12BX15T N3/4 inch Sprocket for SE38 Tension Arm
Regular price
Rs. 2,459.24
Regular price
Sale price
Rs. 2,459.24
Taxes included.
In stock
Price Break
10+
Rs. 2,188.72
19+
Rs. 2,065.76
29+
Rs. 2,041.17
39+
Rs. 2,016.58
49+
Rs. 1,991.98
74+
Rs. 1,967.39
99+
Rs. 1,844.43
199+
Rs. 1,819.84
249+
Rs. 1,795.25
499+
Rs. 1,770.65
999+
Rs. 1,721.47
Description
Description
Dunlop Tension Sprocket: The idler sprocket set is designed as a tensioning element for applications in chain drives. The idler sprocket runs on a self-lubricating ball bearing Type 2Z. We have a range of idler sprockets to suit standard roller chain pitch sizes from O6B-1 to 24B-1.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
- Brand / Quality:
- Dunlop - Good Quality
- Thread Size:
- M20
- Number of Teeth:
- 15
- Part No:
- N3/4 inch
Technical
Technical
| Part No. | N3/4 inch |
|---|---|
| No of Teeth | 15 |
| W | M20mm |
| L | 100mm |
| A | 20mm |
| B | 11.1mm |
| C | 15mm |
| D | 91.63mm |
| Torque Hex Nut 0.5d | 172 Nm |
| Adjusting Range Track R | 38mm |
| Size SE | 38 |
| To Fit Roller Chain ANSI | 60 |
| To Fit Roller Chain DIN 8187 | ISO 12 B |
