SKU: TS-N1/2SE15/18-DUN

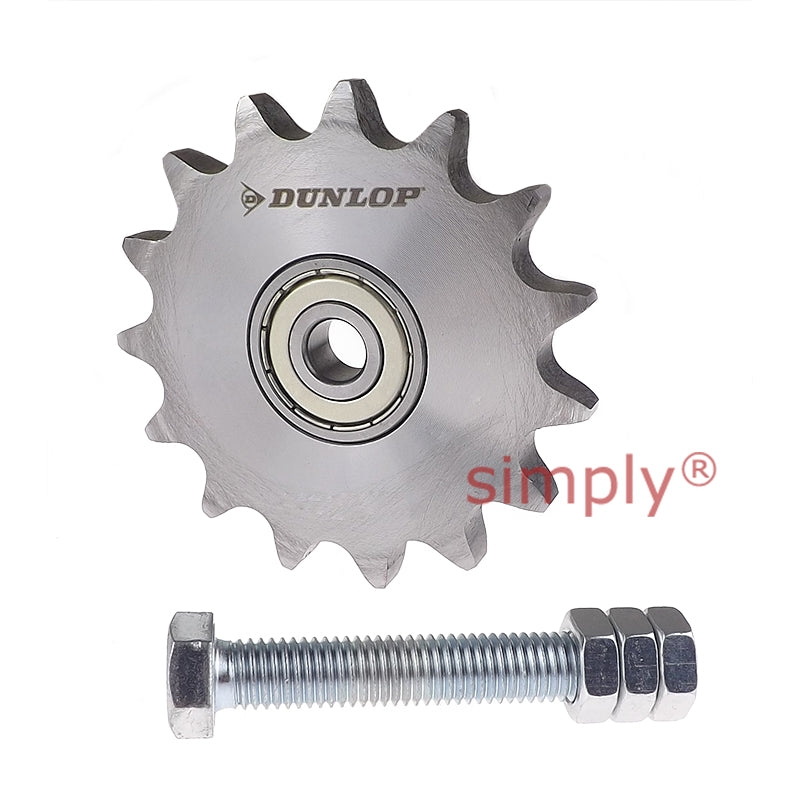

Dunlop 08BX15T N1/2 inch Sprocket for SE15/18 Tension Arm
Dunlop 08BX15T N1/2 inch Sprocket for SE15/18 Tension Arm
Regular price
Rs. 1,627.94
ex VAT
Regular price
Sale price
Rs. 1,627.94
ex VAT
In stock
Price Break
10+
Rs. 1,448.87
19+
Rs. 1,367.47
29+
Rs. 1,351.19
39+
Rs. 1,334.91
49+
Rs. 1,318.63
74+
Rs. 1,302.35
99+
Rs. 1,220.96
199+
Rs. 1,204.68
249+
Rs. 1,188.40
499+
Rs. 1,172.12
999+
Rs. 1,139.56
Couldn't load pickup availability
Description
Description
Dunlop Tension Sprocket: The idler sprocket set is designed as a tensioning element for applications in chain drives. The idler sprocket runs on a self-lubricating ball bearing Type 2Z. We have a range of idler sprockets to suit standard roller chain pitch sizes from O6B-1 to 24B-1.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
- Brand / Quality:
- Dunlop - Good Quality
- Thread Size:
- M10
- Number of Teeth:
- 15
- Part No:
- N1/2 inch
Technical
Technical
| Part No. | N1/2 inch |
|---|---|
| No of Teeth | 15 |
| W | M10mm |
| L | 55mm |
| A | 10mm |
| B | 7.2mm |
| C | 9mm |
| D | 61.08mm |
| Torque Hex Nut 0.5d | 20 Nm |
| Adjusting Range Track R | 23-44mm |
| Size SE | 18 |
| To Fit Roller Chain ANSI | 40 |
| To Fit Roller Chain DIN 8187 | ISO 08 B |
